Manual Thermo Molding Machine

Home / Products / Rubber and Plastic / Manual Thermo Molding Machine
Product Serial : QC-677A

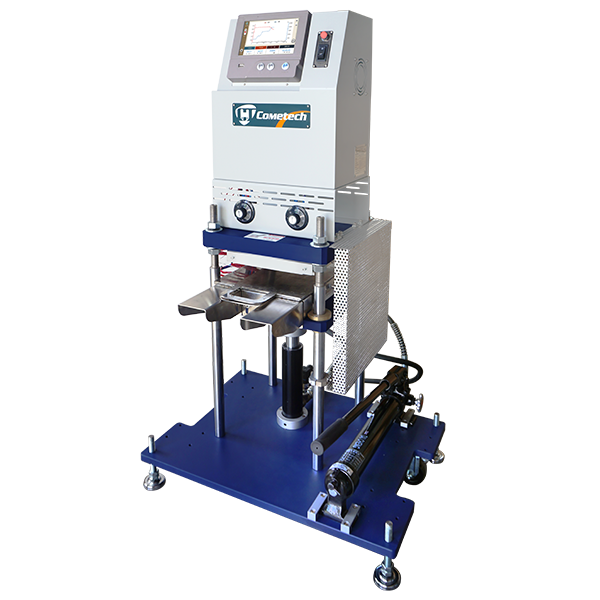

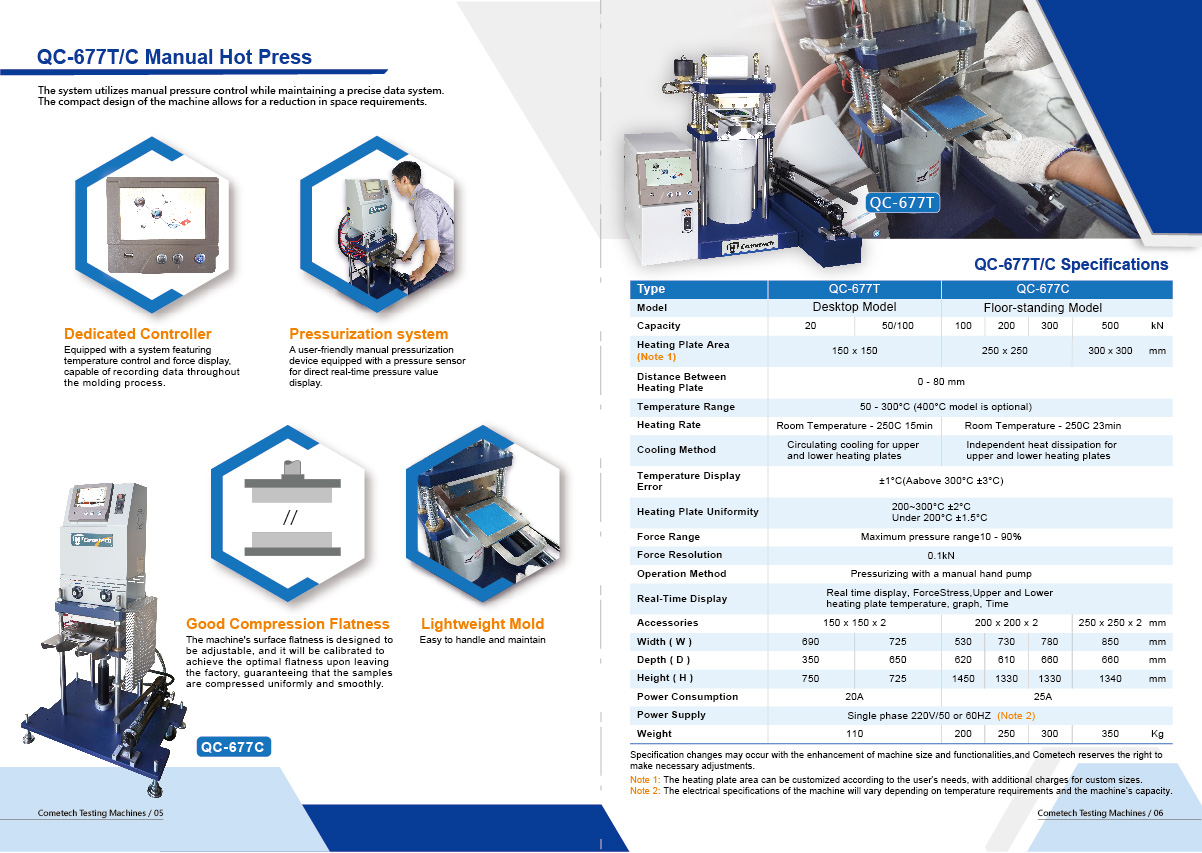

Manual Thermo Molding Machine

This machine has two separated (up and down) heating plates. It use jack to make two plates to clamp and set the plastic or rubber material into the mold than press start bottom to heating, molding, cooling to make the raw material forming. It can do physical property of test, color comparison and as the sample used in mass-producing purposes. Standard assort with the touch panel in guided conversation style screen, user can precisely and smoothly to proceed with test. User can easily have the defined unit calculated value from the built-in unit. Also, display the graph on panel for user to control testing immediacy information like force, time, and temperature.



Industry:Rubber, plastic

Pressure(Tons) 10, 20, 30, 50 (Tons), or specified capacity
Units Temperature: ℃, ℉
Area: m², cm², mm², ft², in²
Force : kgf, gf, tonf(long), tonf(short),lbf, ozf, kN, N, tonf(SI)
Pressure: bar, kgf/cm², KPa, MPa, mm-Aq(4℃), psi
Temperature Room temperature ~ 300℃
Heating time 50℃→150℃ take 18mins
Cooling method
(optional):
A. water cooling system, 150°C→60°C take 10 mins
(Depends on the size of the heating-plate)
B. External water chiller, average cooling speed 15°C/min
Size of
heating- plate
10, 20 Tons:
25x25cm(standard)
30, 50 Tons:
30×30 cm
Distance between
heating plates
60~100mm ( adjustable)
Piston stroke Max. 80mm
Accessory A set of mold for flat
sheet size 200x200x2mm
Control 7" touch screen
Display Instant force, temperature and diagram
Power Single phase, 220V/50Hz or 60Hz
Dimension 53×62×145 cm(W×D×H)
Weight 10 tons: about 200kg / 20 tons: about 250kg
30 tons: about 300kg / 50tons: about 350kg

Home Page

The main page of the machine.
Easy to understand and operate.




Curved Diagram Mode

With clear test image and easy operating.
The temperature and pressure display with value or curved diagram.
