Tensile Grip/Pressure Grip

Home / Products / Grips / Series M Tensile Grip

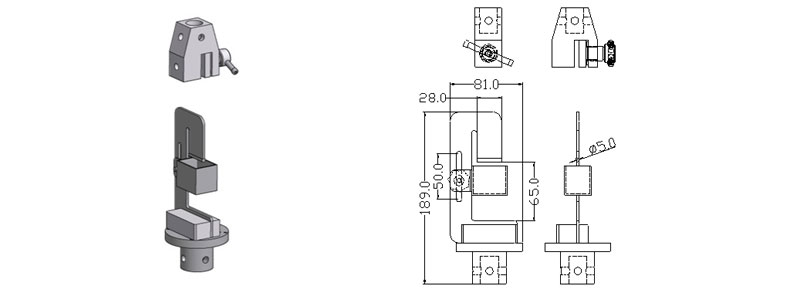

GR-M010 Finch Wet Tensile Strength Grip
Capacity 1kN
Jaw face width 25mm
Specimen thickness 230mm
Mini. load cell 50N
Temperature limits 0~100℃
Up Weight 827g
Down Weight 1140g
Standard TAPPI T456

According to TAPPI T456, suitable to test dry and wet condition of tissue, toilet paper pulling.

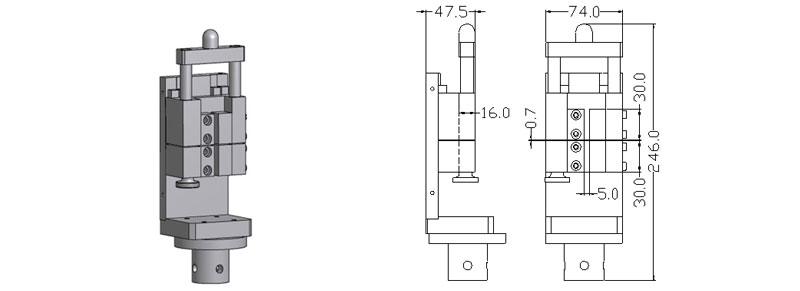

GR-M020 Short Distance Compressive Grip
Capacity 2kN
Jaw face width 30x30mm
Specimen thickness 16mm
Mini. load cell 200N
Temperature limits 0~100℃
Weight 4637g
Standard TAPPI T826

According to TAPPI T826, suitable to test paper adhesion test.
