Product Serial : QC-677T

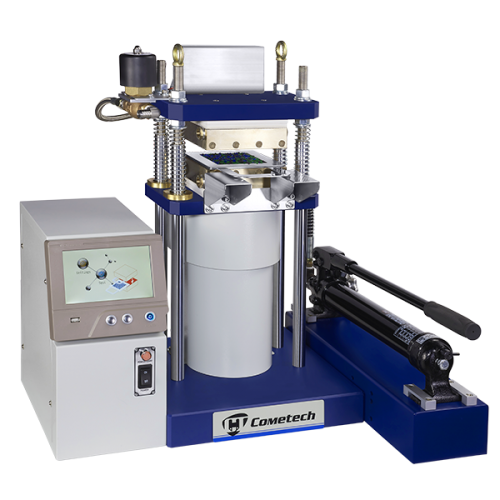

Manual Thermo Molding Machine
This model is built to form raw materials into samples for testing or color matching. Automated molding steps: Put raw materials into molds then place it between compression heating plates to press the air out, heat up the material, and cool it down with water cooling system (optional). It can also be used for basis factory mass production. With our latest and interactive controller users can understand setting and process easily. Real-time data for force, time and temperature will be provided to users for instant control. And our various selections of data units can save users a lot of time from calculating.
Model QC-677T
Pressure(Tons) 5、10 ton (optional)
Units Temperature:℃、℉
Area:m2、cm2、mm2、ft2、in2
Energy:kgf、gf、tonf(long)、tonf(short)、lbf、ozf、kN、N、tonf(SI)
Pressure:bar、kgf/cm2、KPa、MPa、mm-Aq(4℃)、psi
Temperature Room temperature ~ 280℃
Heating time 50℃→150℃ take 18mins
Cooling method
( optional)
A. water cooling system, 150°C→60°C take 10 mins
(Depends on the size of the heating-plate)
B. External water chiller, average cooling speed 15°C/min
Size of heating- plate 15x15cm
Distance between heating plates 60~100 mm (Adjustable)
Piston stroke Max. 80mm
Accessory A set of mold for flat sheet size 100x100x2 mm
Control 7” touch screen
Display Instant force, temperature and diagram
Power Single phase,220V/50Hz or 60Hz
Dimension 69×35×75 cm(W×D×H)
Weight Around 110 kg


*Cometech reserves the right of final explanation on products.

Home Page

The main page of the machine.
Easy to understand and operate.




Curved Diagram Mode

With clear test image and easy operating.
The temperature and pressure display with value or curved diagram.
