Digital Bursting Strength Tester

Home / Products / Package / Digital Bursting Strength Tester
Product Serial : QC-116

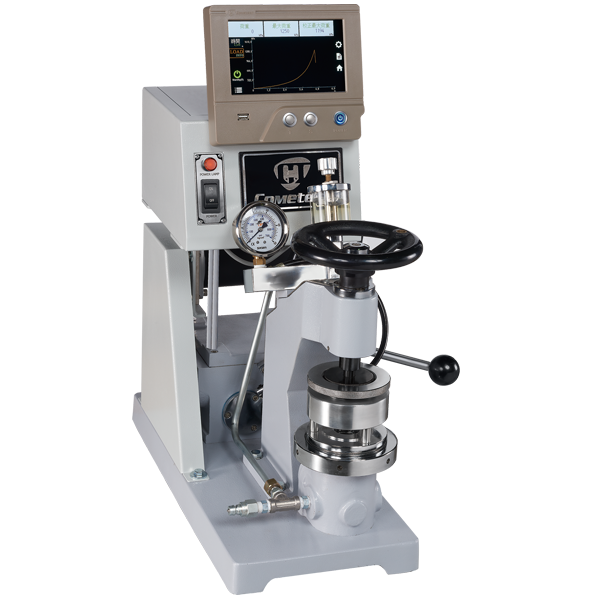

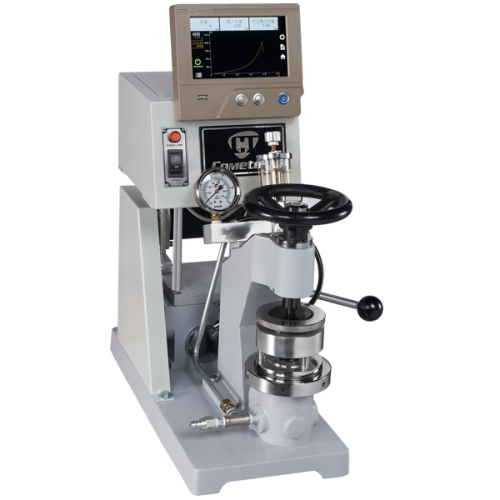

Digital Bursting Strength Tester
Confirm to ISO-2759, GB/T 6545, JIS-P8112, JIS-L1018, ASTM-D2210, TAPPI-T403 Standard

The Bursting Strength Tester uses oil pressure to break specimen through rubber film to obtain specimen break strength value. Bursting resistance strength is a very important characteristic for paper, leather and textile, etc. Cometech Bursting Strength Tester is equipped with our newest D1 controller, touch panel will show real-time data and graph simultaneously to help users easily control test condition and do after test statistical analysis.

Industry:Paper, Textile, Leather

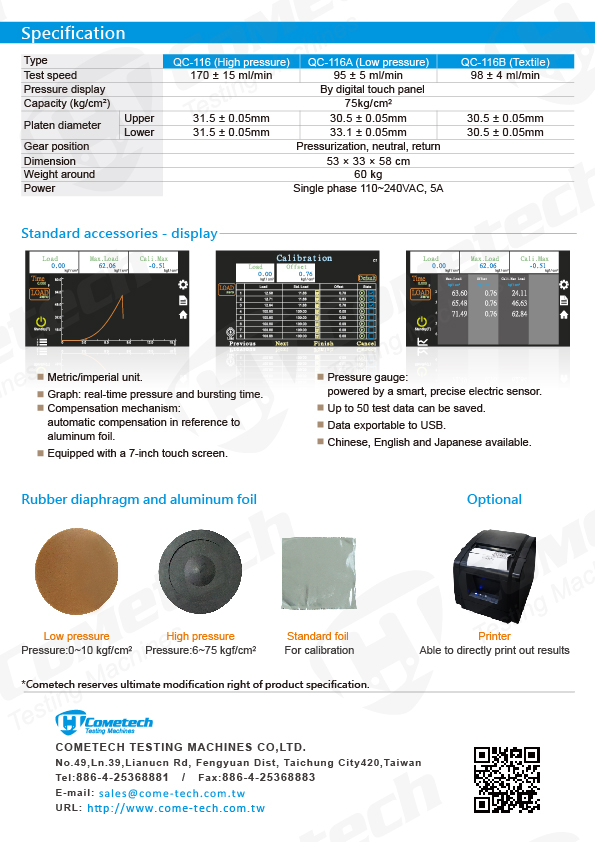

Type QC-116
(high pressure)
QC-116A
(Low pressure)
QC-116B
(Textile)
Test speed 170 ± 15 ml/min 95 ± 5 ml/min 98 ± 4 ml/min
Pressure display D1 Control touch panel
Max. Capacity(kg/cm²) 75kg/cm2
Diameter of clamping Upper plate 31.5 ± 0.05mm 30.5 ± 0.05mm 30.5 ± 0.05mm
Lower plate 31.5 ± 0.05mm 33.1 ± 0.05mm 30.5 ± 0.05mm
Gear position pressurization、neutral、return
Dimension 53  ×  33 × 58 cm
Weight(around)

60 kg

Power

Single phase 110~240VAC,5A


Low pressure:
Pressure:0~10 kgf/cm2


High pressure:
Pressure:6~75 kgf/cm2


Standard foil:
For calibration

Printer - Able to directly print out results






*Metric/imperial unit.

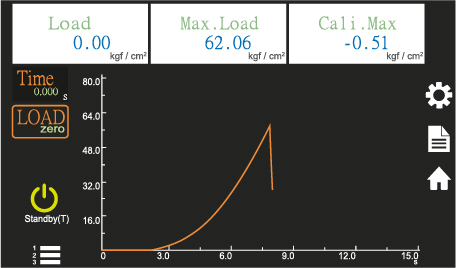

*Graph: real-time pressure and bursting time.

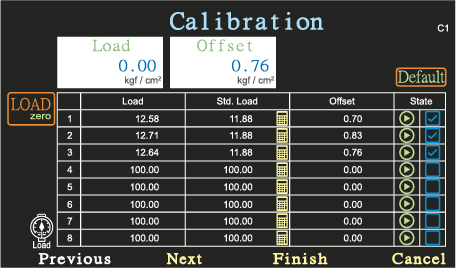

*Compensation mechanism: automatic compensation in reference to aluminum foil.
*Equipped with a 7-inch touch screen.
*Pressure gauge: powered by a smart, precise electric sensor.

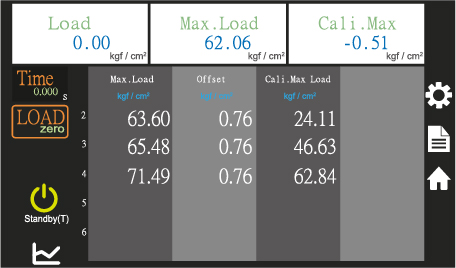

*Up to 50 test data can be saved.
*Data exportable to USB.
*Chinese, English and Japanese available.
