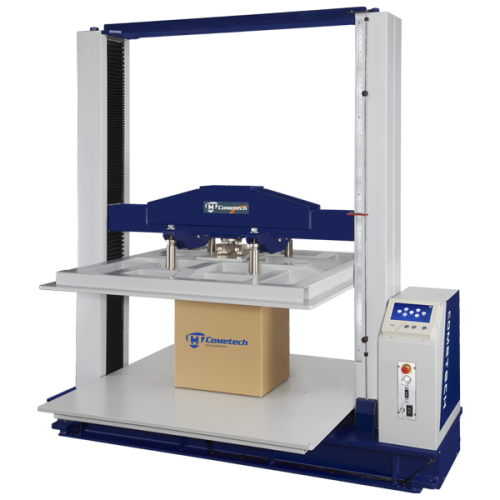

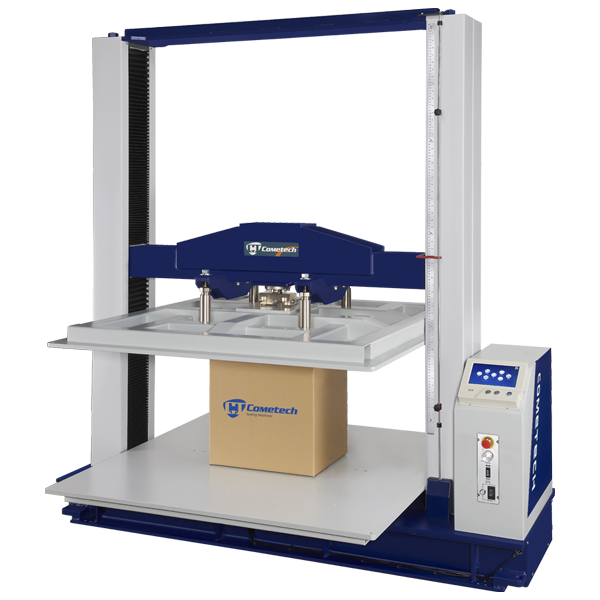

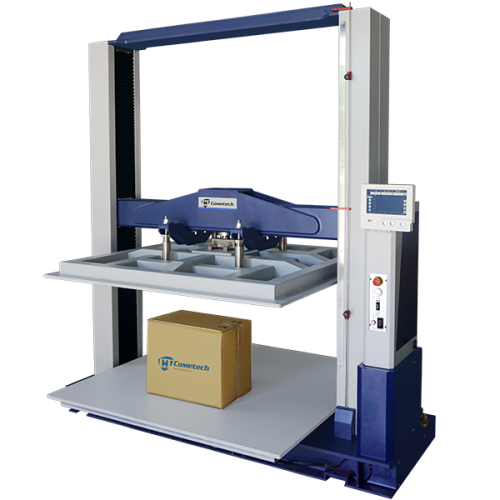

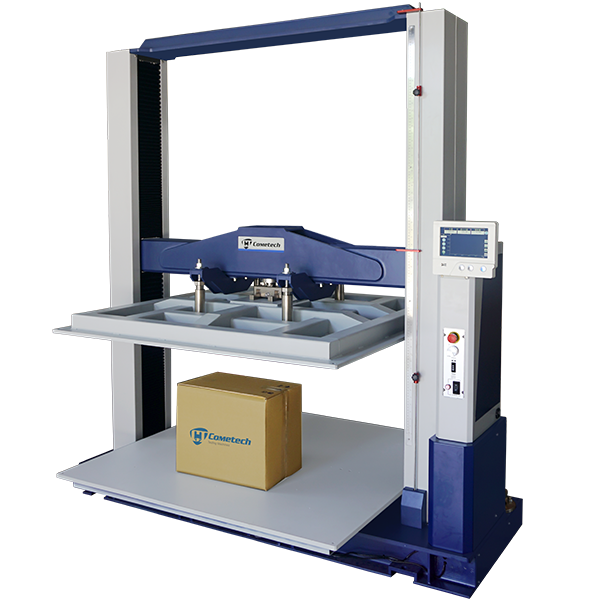

121M1F-Box Compression tester
Confirm to ISO 12048、ISO 2872、ASTM D4169、TAPPI T804、GB T4857-4、JIS-Z-0403-2、ASTM D642、GBIT 16491、DIN 55440-1 Standard
QC-121M1F tests the compression capacity of large packaging material such as cartons, foams or styrofoam, etc. The tester simulates a testing condition similar to logistics and storaging industry in which cartons are applied to mesaure its capacity and deformation against compression. QC-121M1F measures the accurate force using evenly distributed sensors; the upper platen can be fixed or versatile depending on test requirement. The software is capable of several testing patterns such as basic compression, constant load compression and dynamic load compression. The test results are precisely and instantly presented by distinct analysis and test graph.

Industry:Paper, Food, Beverage, Package
Inquiry
Model QC-121M1F (Type A) QC-121M1F (Type B) QC-121M1F (Type C) QC-121M1F (Type D)
Test space 100×100×120 cm 120×120×120 cm 100×100×120 cm 120×120×120 cm
Max. capacity 2000kg (20kN) 5000kg (50kN)
Upper platen type Movable and fixed. Users can make adjustment themselves
Units Force: gf, kgf, lbf, N, kN, ozf, tonf(SI), ton(long), tonf(short)
Pressure: Kpa, Mpa, psi, bar, mm-Aq, mm-Hg
Force resolution 1/50,000 (31 bits)
Load cell accuracy ± 1% (within range 5 ~ 100% load cell capacity)
Stroke resolution 0.0001mm
Speed range 0.2 ~ 300mm/min
Speed accuracy ± 1%
PC-port RJ 45 (TCP/IP)
Data sampling rate Max. 400 Hz
Motor type Servo motor
Hardware safety protection Upper limit, lower limit, emergency stop
Power supply Single phase 200 ~ 240VAC，5A Single phase 200 ~ 240VAC，8A
Dimension (WxDxH) 162×100×195cm 182×120×195cm 162×100×195cm 182×120×195cm
Weight 800 kg 900 kg 850 kg 950 kg

1. A 7-inch TFT colored touch screen
2. Chinese, English, Japanese, available
3. Force, stress, displacement, time are indicated
4. Test setting: Test speed, direction, automatic return, machine stop at break.
5. Data analysis: Maximum force, interval force, force at break, etc.
6. Protection from excessive test stroke, capacity and time
7. Up to 50 data can be saved by USB
8. It can be restored to factory settings.
9. It can be calibrated in stand-alone mode
10. Metric/imperial units adjustable
11. Supports various signals12. Test stop settings (by force, displacement, time)

1. It is operated by keyboard and mouse; platen position is controllable by up/down button
2. Adjustment of X-Y axis on the graph: curve’s point marking, interval, slope, etc.
3. Different test patterns available: Hold tensile, special setting of platen movement
4. TCP / IP interface (two-way transmission). Machine can be controlled by PC
5. Test setting can be saved as module to reduce mistake and errors
6. Available in Chinese, English, Japanese, Korean, Spanish, Polish
7. Multiple test data can be shown simultaneously on the software
8. Designed specifically for compression test
9. The software can show data, graphs or both at the same time
10. Compatible with Window 7/8/10
11. Sampling rate up to 400Hz
12. The software supports various I / O signals
13. Unit can be chosen between metric or imperial
14. The data table can be modified based on user’s preference
15. Data can be renamed and formula can be created
16. Data processing: store, call, list, statistical comparison, etc.
17. Protection from excessive test stroke, capacity and time
18. Sample specification can be saved as module for quick use
19. Upper and lower limits can be selected to access key data
