QC-508M2F (2kN)-Extended Computerized Tensile (compression) Testing Machine

Home / Products / Tensile Testing Machine / QC-508M2F (2kN)-Extended Computerized Tensile (compression) Testing Machine
Product Serial : QC-508M2F (Extended)

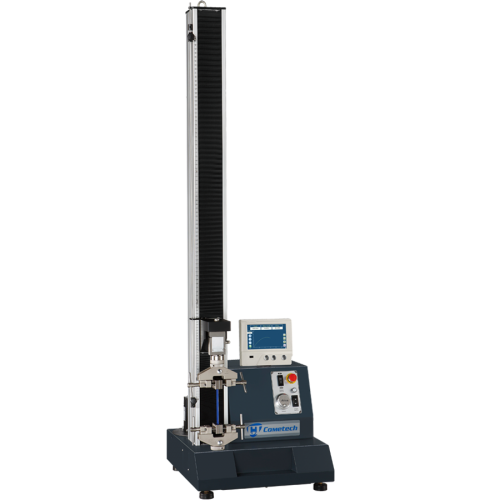

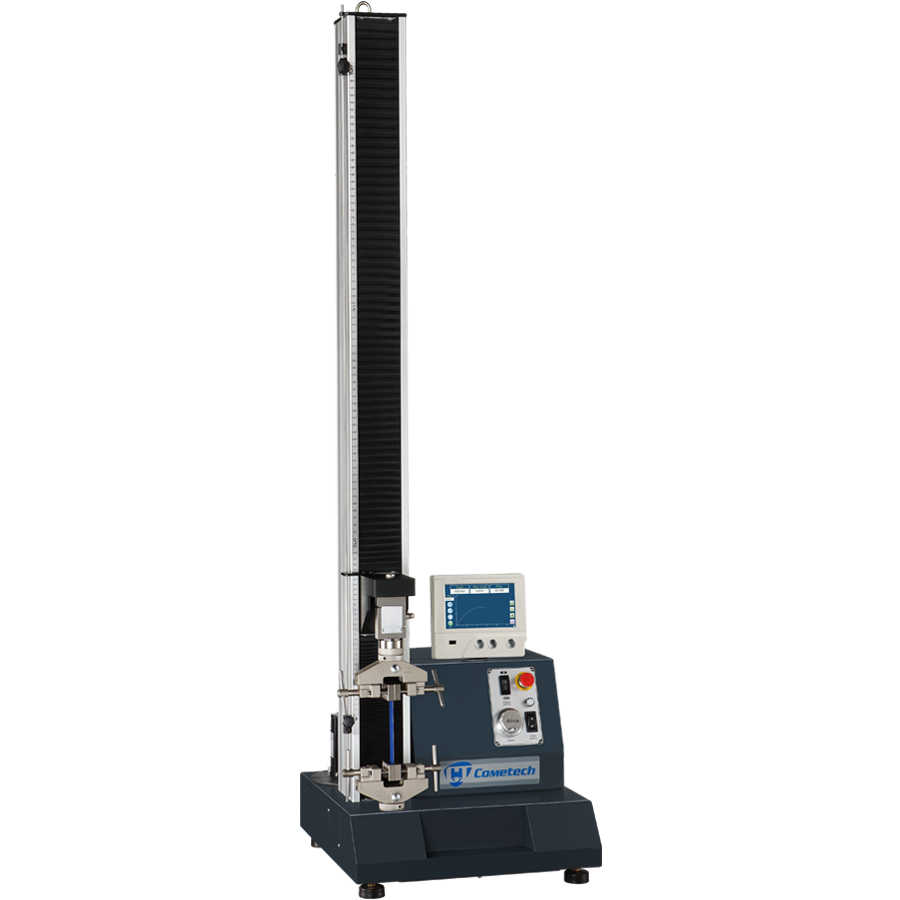

QC-508M2F (2kN)-Extended Computerized Tensile (compression) Testing Machine
Confirm to ISO 7500-1, ASTM E4, ASTM D-76, DIN5122, JIS B7721/B7733, EN 1002-2, BS1610, GB T228 Standard
QC-508M2F table type machine has capacity up to 2kN. It offers a quiet testing environment and accurate test result. On stand-alone mode, it can do tensile test, compression test, bending test and so on. Transmission system needs little maintenance even after being used for a while. The precise hand wheel controls grip’s movement at a small scale. With this tool, users can move the grip to a precise position. The force signal is emitted and received instantly so as to prevent overload. A port is reserved for signals that are outside the machine for a more flexible operation.


Industry: Rubber, Plastic, Paper, Textile, Metal, Wood, Tape, Electron, Package, Medical, Construction
Model QC-508M2F (Extended)
Max. Capacity 2 kN
Units Force: gf, kgf, lbf, N, kN, ozf, tonf(SI), ton(long), tonf(short)
Pressure: Kpa, Mpa, psi, bar, mm-Aq, mm-Hg
Force Resolution 31 bits
Force Precision 1/100,000
Test Stroke(w/o grip) 1100mm
Stroke Resolution 0.0001 mm
Cantilever Distance 70mm
Speed Range Low Speed Mode : 0.0005~9mm/minHigh
Speed Mode : 0.05~1000mm/min
Speed Accuracy Lower 1%
PC-Port RJ45(TCP/IP)
Data Sampling Rate Max.1200Hz
Motor Type Servo Motor
Feature ※Force, displacement, time, stress, and strain display in real time
※The calibration parameter is recorded automatically in the loadcell. When it is replaced, no adjustment is required.
※The displacement sensor can be recognized by the controller automatically. When it is replaced, no complicated setting is required.
※User-friendly test settings: moving direction, force/displacement zeroed automatically, test speed, pause are adjustable.
※Automatic return after the test
※Machine protection by force, time, displacement, etc.
※The jog precisely controls displacement.
※Optional display is available for stand-alone mode.
※In user-defined mode, cyclic test and test in a long duration can be achieved.
Power Supply Single Phase, 200 ~ 240VAC,5A
Dimension 50× 53 × 175 cm
Weight 100 kgf



(1) Displayer

1. A 7-inch TFT colored touch screen
2. Available to support the protection of stop condition for over stroke, over capacity and over time.
3. Chinese, English, Japanese, available
4. Force, stress, torque, displacement, time are indicated
5. Test setting: Test speed, direction, automatic return, machine stop at break
6. Data analysis: Maximum force, interval force, force at break, etc.
7. Protection from excessive test stroke, capacity and time
8. Up to 50 data can be saved by USB
9. It can be restored to factory settings.
10.It can be calibrated in stand-alone mode
11.Metric/imperial units adjustable
12.Supports various signals



(2) Extensometer




QC-557 Short extensometer which
is applied in under 50% of elongation test.
  QC-551 Long extensometer which
is applied in over 20% of elongation test.



1. Data sample rate faster can be set up to 400Hz
2. Operation method: By keyboard and mouse control test, can also through up and down button to adjust the fixture position
3. Compatible with Window 7 /8 /10 system
4. Software has multi-languages with Chinese, English, Japanese, Korean, Spanish and Polish display.
5. Operating mode: TCP/IP interface, two-way transmission, the computer directly control the machine action
6. Can import multiple test data display simultaneously
7. Unit selection can be Metric unit and Imperial units.
8. Form flexibility, self-planning information analysis .
9. Data name can be self-set and can self-defined formula
10. Test Screen can be selected data display, graphic display or simultaneous display.
11. Data processing: store, call, list, statistical comparison, etc..
12. Graph X-Y axis physical quantity adjustment, graph-specific mark, interval mark, slope and son on.
13. Test tensile, compression, bending, peeling, spring and other tests.
14. Software protection: Overload, over -displacement, over-time protection.
15. Variety of test actions, Ex. hold tensile (compression), 10 grades of the actions.
16. Modularization of specimen setting, providing easy to set specimen.
17. Modularization of test conditions to reduce artificial setting negligence and error.
18. Key data capture, can set the upper and lower limits of test data specifications.
19. Support multiple sets of I / O signals, increase testing mechanism.
