QC-508M1F (2kN)-Extended Computerized Tensile (compression) Testing Machine

Home / Products / Tensile Testing Machine / QC-508M1F (2kN)-Extended Computerized Tensile (compression) Testing Machine
Product Serial : QC-508M1F (Extended)

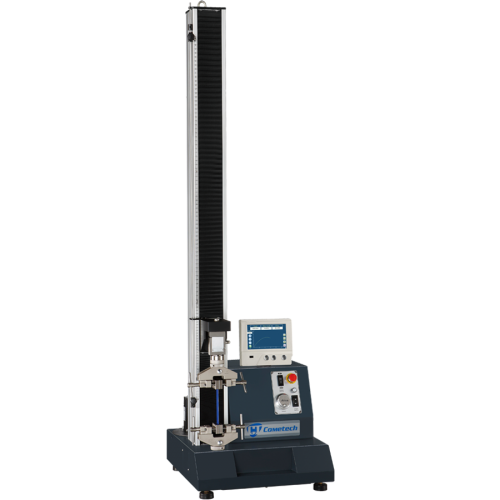

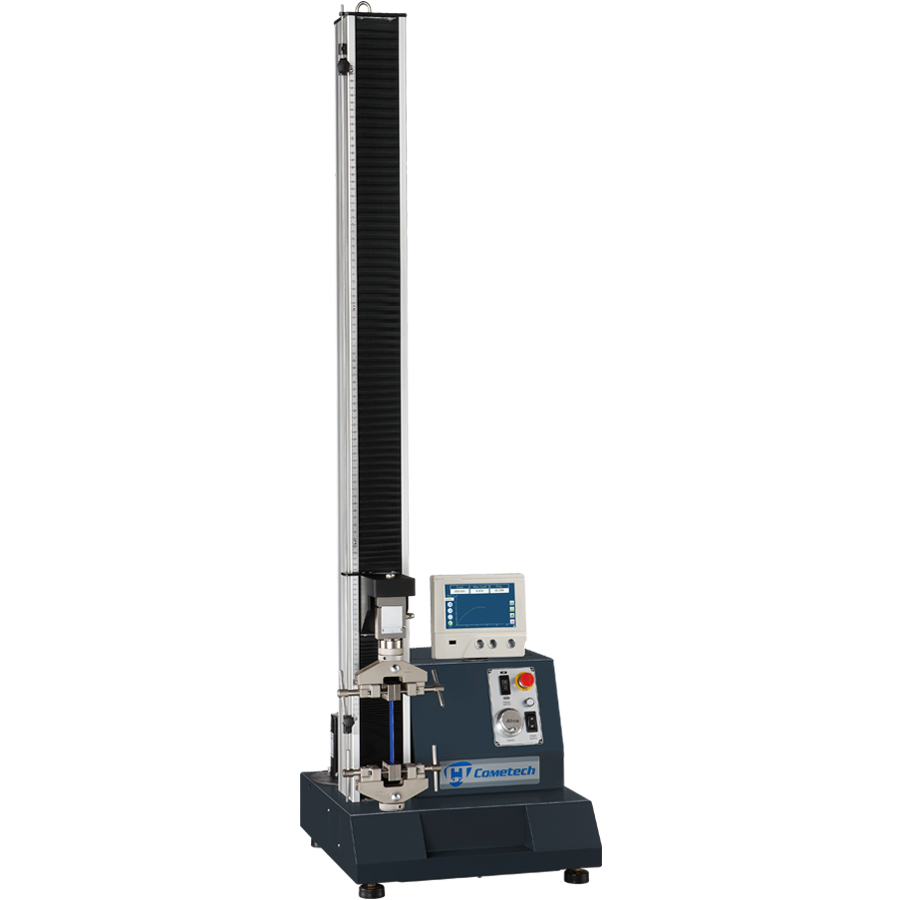

QC-508M1F (2kN)-Extended Computerized Tensile (compression) Testing Machine
Confirm to ISO 7500-1, ASTM E4 , ASTM D-76, DIN5122 , JIS B7721/B7733 , EN 1002-2, BS1610,GB T228 Standard
One column type has a better design of the machine volumn and and operation. The machine adopt servo motor and high precise ball screw. QC-508M1F is suitable for the test force below 2kN. User can base on the specimen length and elongation to choose the machine stroke. We can provide complete planning for grips to test with different test methods.The dedicated software for M1F can be installed under Windows7/8/10, it is avaliable for tensile, compression, bending, peeling, constant tensile or compression tests and so on. The software is quite user friendly and easy to learn, it can support different unit(imperial or metric), real-time curve graph display and provide complete data analysis function. All the report can be adjust, full analysis or save after finish the test. User can choose the optional display for stand alone operation to have a quick test.


Industry: Rubber, Plastic, Paper, Textile, Metal, Wood, Tape, Electric, Package, Medical, Construction
Model QC-508M1F (Extended)
Max. Capacity 2 kN
Units 31 bits
Force Resolution 1/50,000
Test Stroke(w/o grip) 1100mm
Stroke Resolution 0.0001 mm
Cantilever Distance 70mm
Speed Range 0.2 ~ 1000mm/min (digital type setting)
Speed Accuracy Lower 1%
PC-Port RJ45(TCP/IP)
Data Sampling Rate Max.400Hz
Motor Type Servo Motor
Feature ※Force, displacement, time, stress, and strain display in real time
※The calibration parameter is recorded automatically in the loadcell. When it is replaced, no adjustment is required.
※The displacement sensor can be recognized by the controller automatically. When it is replaced, no complicated setting is required.
※User-friendly test settings: moving direction, force/displacement zeroed automatically, test speed, pause are adjustable.
※Automatic return after the test
※Machine protection by force, time, displacement, etc.
※The jog precisely controls displacement.
※Optional display is available for stand-alone mode.
Power Supply Single Phase, 200 ~ 240VAC,5A
Dimension 50× 53 × 175 cm
Weight 100 kgf



(1) Displayer

1. A 7-inch TFT colored touch screen
2. Available to support the protection of stop condition for over stroke, over capacity and over time.
3. Chinese, English, Japanese, available
4. Force, stress, torque, displacement, time are indicated
5. Test setting: Test speed, direction, automatic return, machine stop at break
6. Data analysis: Maximum force, interval force, force at break, etc.
7. Protection from excessive test stroke, capacity and time
8. Up to 50 data can be saved by USB
9. It can be restored to factory settings.
10.It can be calibrated in stand-alone mode
11.Metric/imperial units adjustable
12.Supports various signals



(2) Extensometer




QC-557 Short extensometer which
is applied in under 50% of elongation test.
  QC-551 Long extensometer which
is applied in over 20% of elongation test.



1. Data sample rate faster can be set up to 400Hz
2. Operation method: By keyboard and mouse control test, can also through up and down button to adjust the fixture position
3. Compatible with Window 7 /8 /10 system
4. Software has multi-languages with Chinese, English, Japanese, Korean, Spanish and Polish display.
5. Operating mode: TCP/IP interface, two-way transmission, the computer directly control the machine action
6. Can import multiple test data display simultaneously
7. Unit selection can be Metric unit and Imperial units.
8. Form flexibility, self-planning information analysis .
9. Data name can be self-set and can self-defined formula
10. Test Screen can be selected data display, graphic display or simultaneous display.
11. Data processing: store, call, list, statistical comparison, etc..
12. Graph X-Y axis physical quantity adjustment, graph-specific mark, interval mark, slope and son on.
13. Test tensile, compression, bending, peeling, spring and other tests.
14. Software protection: Overload, over -displacement, over-time protection.
15. Variety of test actions, Ex. hold tensile (compression), 10 grades of the actions.
16. Modularization of specimen setting, providing easy to set specimen.
17. Modularization of test conditions to reduce artificial setting negligence and error.
18. Key data capture, can set the upper and lower limits of test data specifications.
19. Support multiple sets of I / O signals, increase testing mechanism.
