Product Serial : QC-526D2 (10kN)
QC-526D2 Universal Testing Machine
Confirm to ISO 7500-1, ASTM E4 , ASTM D-76, DIN5122 , JIS B7721/B7733 , EN 1002-2, BS1610,GB T228 Standard

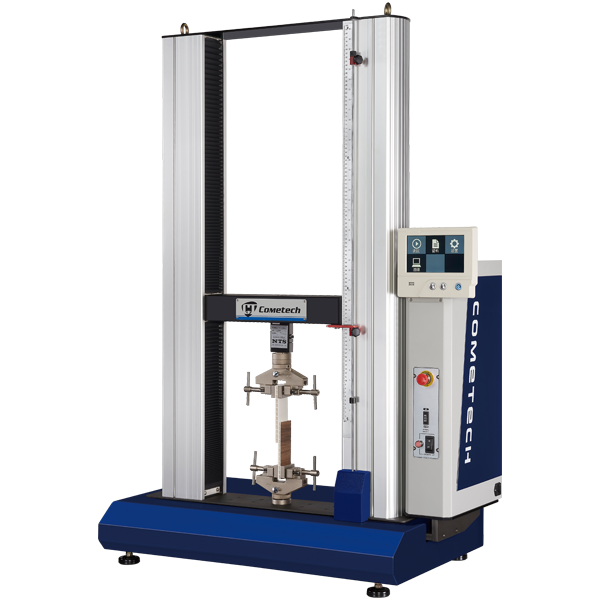

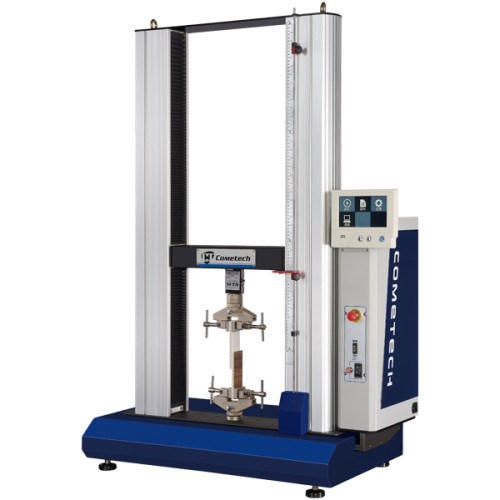

526D2 is a double column, table-top universal testing machine with max capacity of 10kN. It has a larger testing area, which provide greater capability to customize test environment based on users' needs.Users can conduct the test directly or using D2 software on computer with Windows 7 or above. D2 can perform tensile, compression, bending, peeling and some other tests. With multiple languages, both Metric and Imperial units, D2 is very easy to learn and convenient to use. It can also display test graph instantly. With various of analysis providing, users can analyze their test result better and generate test report with our software.


Applicable Industry:
Rubber, Plastic, Paper, Textile, Metal, Wood, Tape, Electronics, Packaging, Health Care, and Construction Industry
Model Standard - QC-526D2 Height Extend - QC-526D2
Capacity 10 kN
Load cell resolution 23 bits
Load cell accuracy 1/10,000
Test stroke 800 mm 1200 mm
Displacement resolution 0.001 mm
Cantilever distance 425 mm (550mm、680mm、800mm可依需求選購)
Speed Range 25~650mm/min (digital type setting)
Min speed 25mm/min at 1000kg
45mm/min at 2000kg
Connect to PC through TCP/IP port with software cable provide upon purchase
Data sampling rate  Max 400Hz
Hardware protection  Upper and lower limit switches and emergency stop button
Power source DC motor
Rigidity 1484 kgf/mm
Feature ※Plug and play interface accessories for quick installation.
※Signal I/O and test space is preserved for expansion if needed in future.
Power Phase 110 / 220VAC,5A
Dimension 86 × 60 × 150 cm 84 x 60 x 195 cm
Weight 145 kg 190 kg

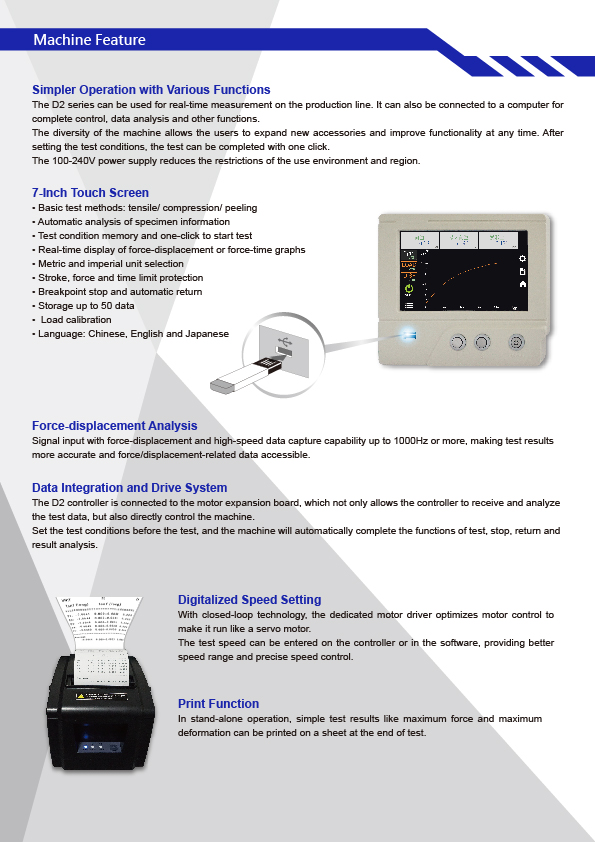

(1)Standard Accessories - D2 Display

1. 7” TFT Color Display
2. Langue: Chinese, English, Japanese
3. Data Display: Force, Pressure, Torque, Displacement, Time.
4. Can modify setting of Hardware, Test, Unit, Data, Protection and graph.
5. Can switch between Metric and Imperial
6. Store up to 50 data
7. Output test data through USB port



(2) Optional Accessories - Software Function
1. Has multiple analysis.
2. Can customize data name.
3. Sampling rate: at most 400Hz
4. Has both Metric and Imperial unit.
5. Can show/hide test data or graph
6. Operation System: Windows 7 or above
7. Can display multiple test data at once.
8. Can save, load, list and compare data.
9. Can reallocate test table to your preference.
10.Can display in Chinese, English and Japanese.
11.Control the machine thru TCP/IP port with computer.
12.Can set up over-load, over-travel or overtime protection.
13.Can run compression, tensile, bending, peeling tests... etc.
14.Axis can be set to force, elongation, display, time, strain or stress… etc

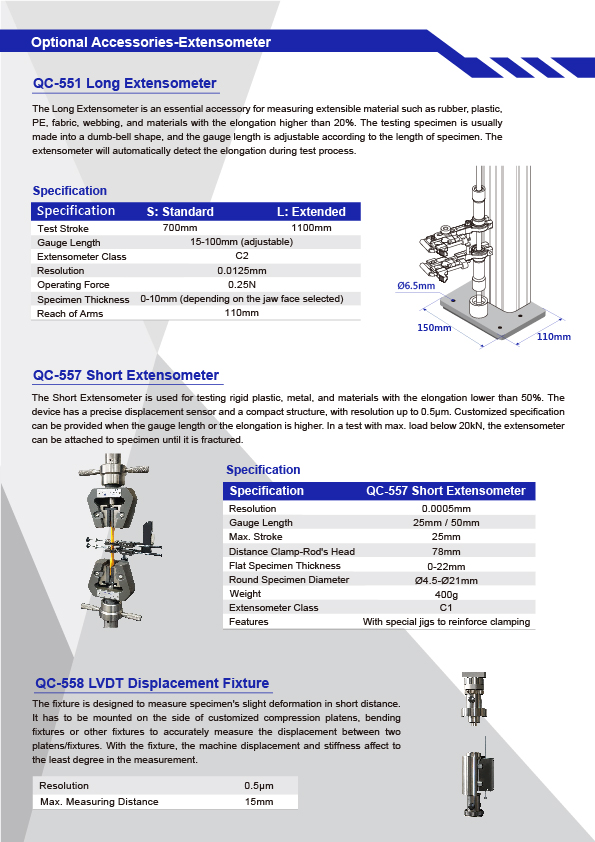

(3) Accessories



QC-557 Short extensometer
Suitable for elongation below 50%
QC-551 Long travel extensometer
Suitable for samples with over 20% elongation

Printer
Able to directly print out results
