QC-548M1F-Computerized Tensile (compression) Testing Machine

Home / Products / Tensile Testing Machine / QC-548M1F-Computerized Tensile (compression) Testing Machine
Product Serial : QC-548M1F

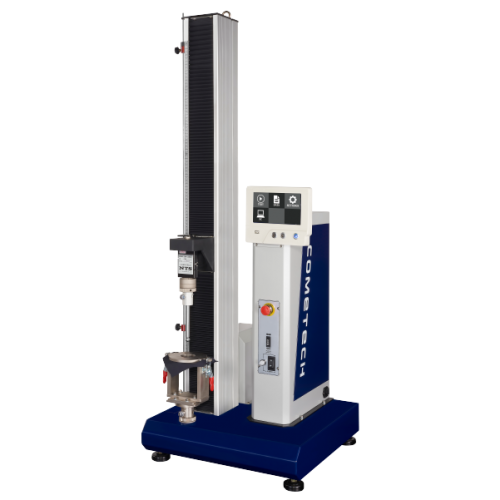

QC-548M1F-Computerized Tensile (compression) Testing Machine
Confirm to ISO 7500-1, ASTM E4 , ASTM D-76, DIN5122 , JIS B7721/B7733 , EN 1002-2, BS1610,GB T228 Standard

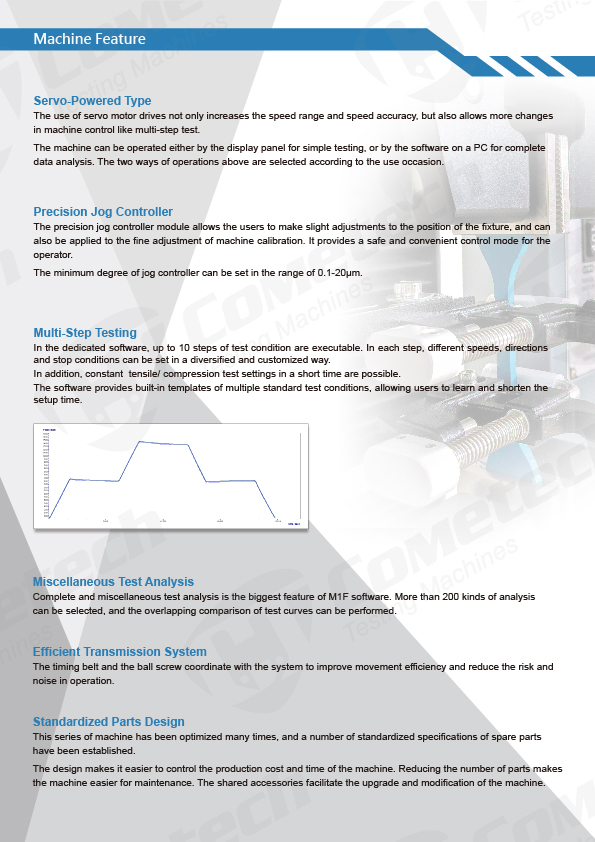

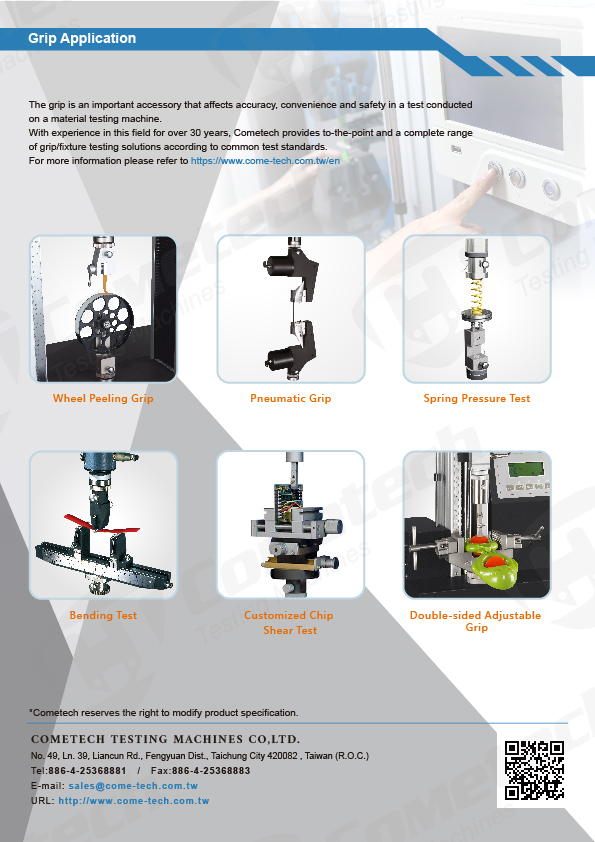

One column type has a better design of the machine volumn and and operation. The machine adopt servo motor and high precise ball screw. QC-548M1F is suitable for the test force below 5kN. User can base on the specimen length and elongation to choose the machine stroke. We can provide complete planning for grips to test with different test methods.The dedicated software for M1F can be installed under Windows7/8/10, it is avaliable for tensile, compression, bending, peeling, constant tensile or compression tests and so on. The software is quite user friendly and easy to learn, it can support different unit(imperial or metric), real-time curve graph display and provide complete data analysis function. All the report can be adjust, full analysis or save after finish the test. User can choose the optional display for stand alone operation to have a quick test. Industry:Rubber, Plastic, Paper, Textile, Metal, Wood, Tape, Electric, Package, Medical, Construction

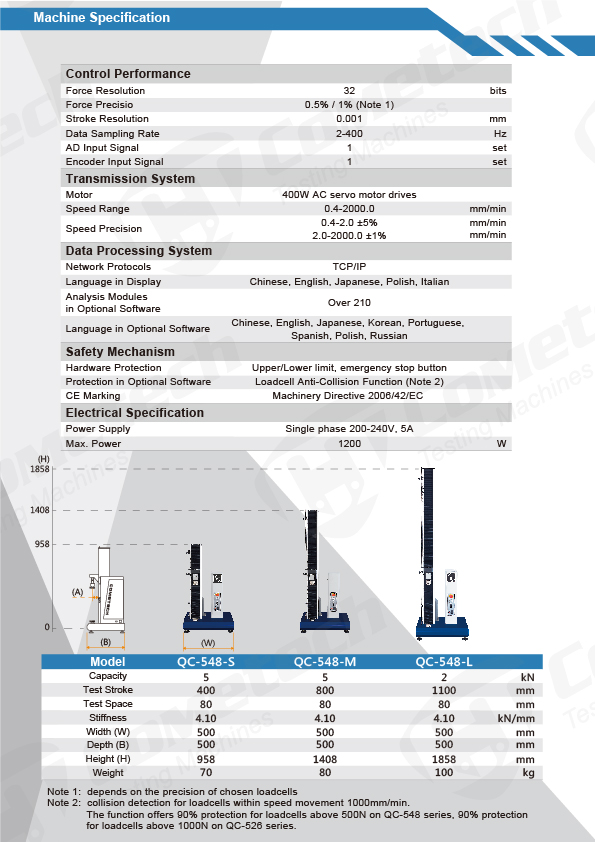

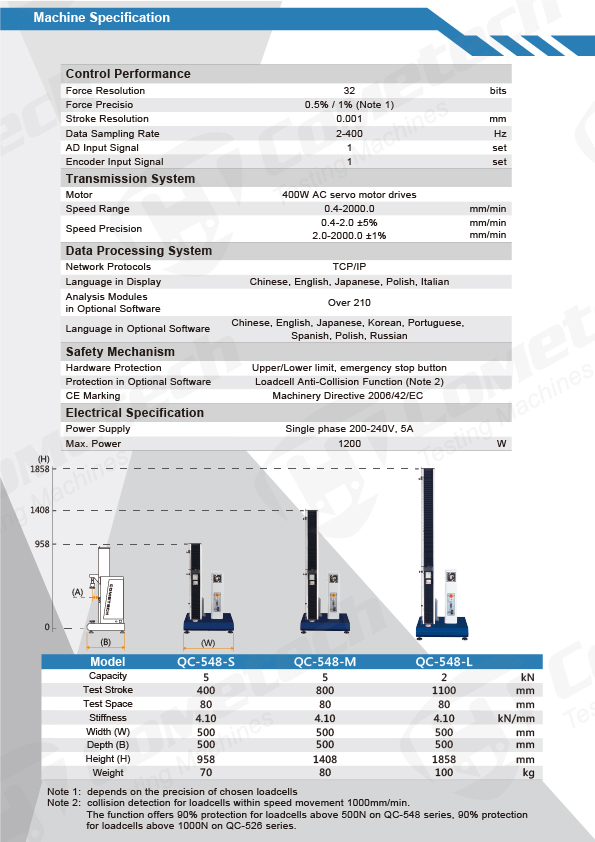

Model QC-548M1F-S QC-548M1F-M
Max. Capacity 5 kN
Units Force: gf, kgf, lbf, N, kN, ozf, tonf(SI), ton(long), tonf(short)
Pressure: Kpa, Mpa, psi, bar, mm-Aq, mm-Hg
Force Resolution 1/50,000 (31 bits)

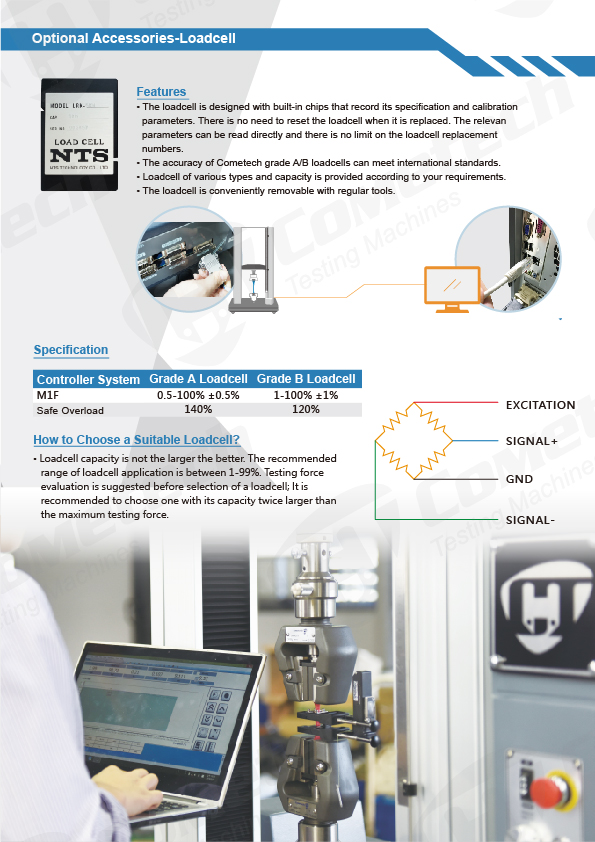

Load cell accuracy ±1% under the range 2-100% of the load cell capacity
(There are optional load cells with higher accuracy)
Test Stroke(w/o grip) 400 mm 800 mm
Stroke Resolution 0.0001 mm
Speed Range 0.2 ~ 2000mm/min (digital type setting)
Speed Accuracy ±1%
Data Sampling Rate Max.400Hz
Space Between Columns 80 mm
PC-Port RJ45(TCP/IP)
Motor Type Servo Motor
Frame Stiffness 4.1 kN/mm
Power Supply Single Phase, 200 ~ 240VAC,5A
Dimension 50X50X105cm 50X50X145cm
Weight 65 kgf 80 kgf

(1)Display

1.A 7-inch TFT colored touch screen
2.Available to support the protection of stop condition for over stroke, over capacity and over time.
3.Chinese, English, Japanese, available
4.Force, stress, torque, displacement, time are indicated
5.Test setting: Test speed, direction, automatic return, machine stop at break
6.Data analysis: Maximum force, interval force, force at break, etc.
7.Protection from excessive test stroke, capacity and time
8.Up to 50 data can be saved by USB
9.It can be restored to factory settings.
10.It can be calibrated in stand-alone mode
11.Metric/imperial units adjustable
12.Supports various signals

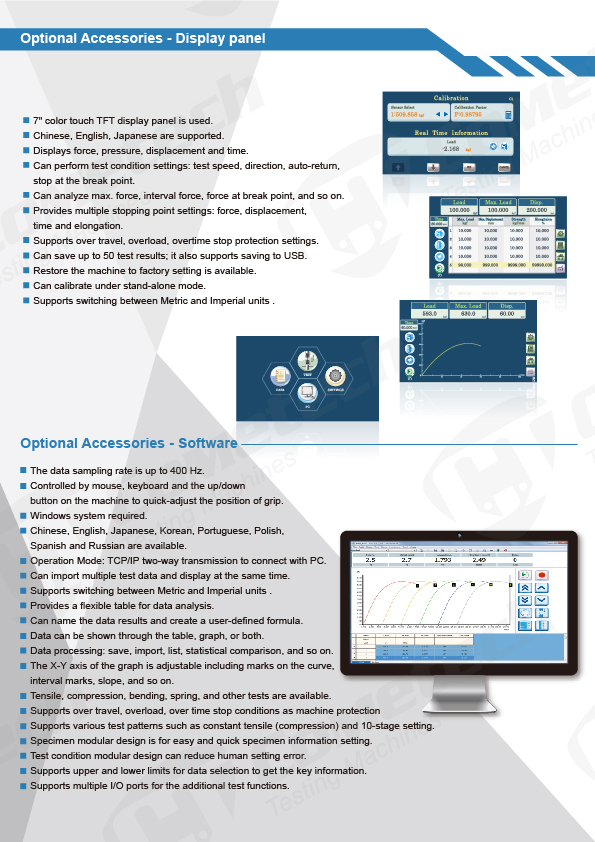

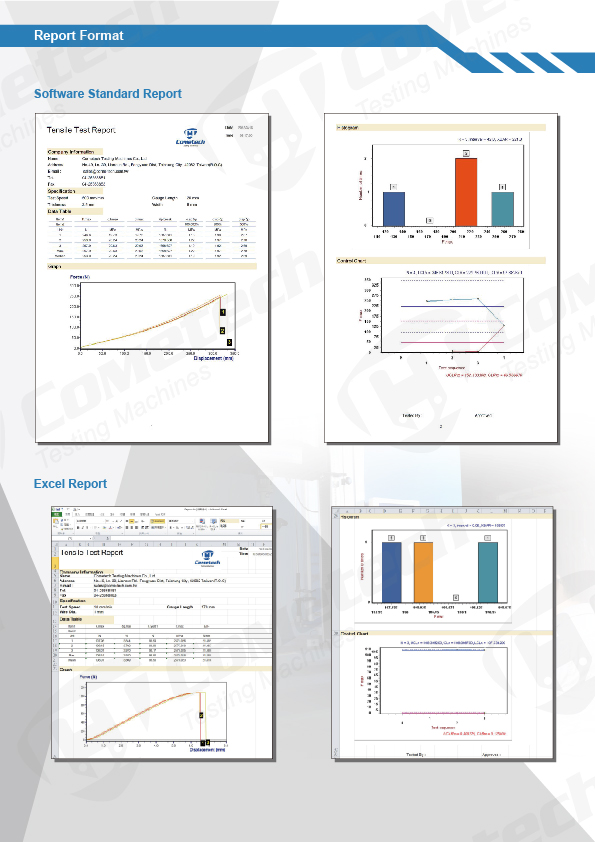

(2) Optional Accessories - Software Functions

1.It is operated by keyboard and mouse; grip position is controllable by up/down button
2.Adjustment of X-Y axis on the graph: curve’s point marking, interval, slope, etc.
3.Different test patterns available: Hold tensile, special setting of grip movement
4.TCP / IP interface (two-way transmission). Machine can be controlled by PC
5.Test setting can be saved as module to reduce mistake and errors
6.Available in Chinese, English, Japanese, Korean, Spanish, Polish
7.Multiple test data can be shown simultaneously on the software
8.Tensile, compression, bending, peeling, spring tests available
9.The software can show data, graphs or both at the same time
10.Compatible with Window 7/8/10
11.Sampling rate up to 400Hz
12.The software supports various I / O signals
13.Unit can be chosen between metric or imperial
14.The data table can be modified based on user’s preference
15.Data can be renamed and formula can be created
16.Data processing: store, call, list, statistical comparison, etc.
17.Protection from excessive test stroke, capacity and time
18.Sample specification can be saved as module for quick use
19.Upper and lower limits can be selected to access key data

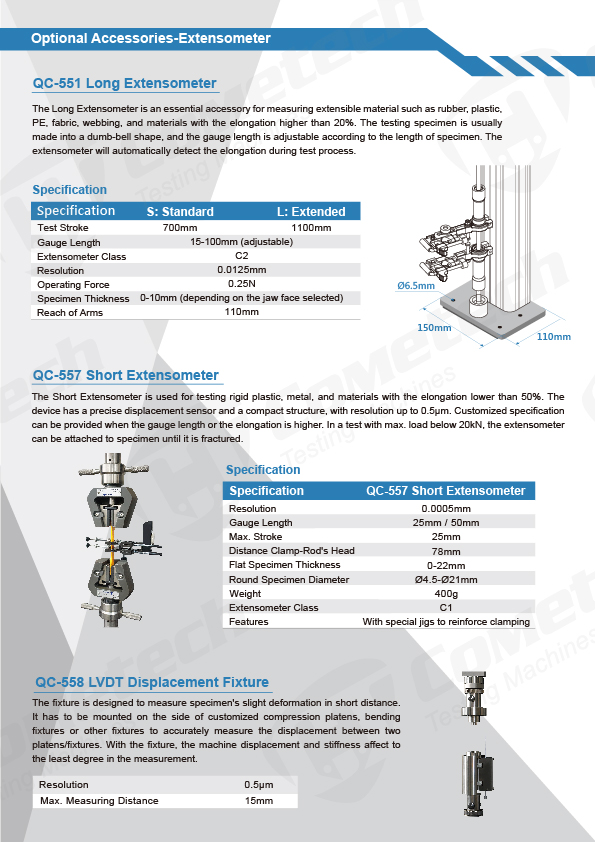

(3) Optional Accessories - Extensometer




QC-557 Short extensometer
Suitable for elongation below 50%

QC-551 Long travel extensometer
Suitable for samples with over 20% elongation


1.Force, displacement, time, stress, and strain display in real time
2.The calibration parameter is recorded automatically in the loadcell. When it is replaced, no adjustment is required.
3.The displacement sensor can be recognized by the controller automatically. When it is replaced, no complicated setting is required.
4.User-friendly test settings: moving direction, force/displacement zeroed automatically, test speed, pause are adjustable.
5.Automatic return after the test
6.Machine protection by force, time, displacement, etc.
7.The jog precisely controls displacement.
8.Optional display is available for stand-alone mode.
