QC-548M2F-Computerized Tensile (compression) Testing Machine

Home / Products / Tensile Testing Machine / QC-548M2F-Computerized Tensile (compression) Testing Machine
Product Serial : QC-548M2F

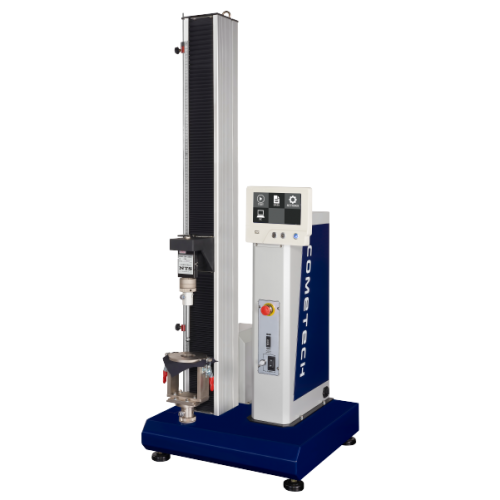

QC-548M2F-Computerized Tensile (compression) Testing Machine
Confirm to ISO 7500-1, ASTM E4, ASTM D-76, DIN5122, JIS B7721/B7733, EN 1002-2, BS1610, GB T228 Standard
QC-548M2F table type machine has capacity up to 5kN. It offers a quiet testing environment and accurate test result. On stand-alone mode, it can do tensile test, compression test, bending test and so on. Transmission system needs little maintenance even after being used for a while. The machine has a separate electricity control that avoids interference with other transmission components for a higher testing stability. Upgrading of the controller system is also easily practicable.The precise hand wheel controls grip’s movement at a small scale. With this tool, users can move the grip to a precise position. The force signal is emitted and received instantly so as to prevent overload. A port is reserved for signals that are outside the machine for a more flexible operation.

Industry:Rubber, Plastic, Paper, Textile, Metal, Wood, Tape, Electron, Package, Medical, Construction

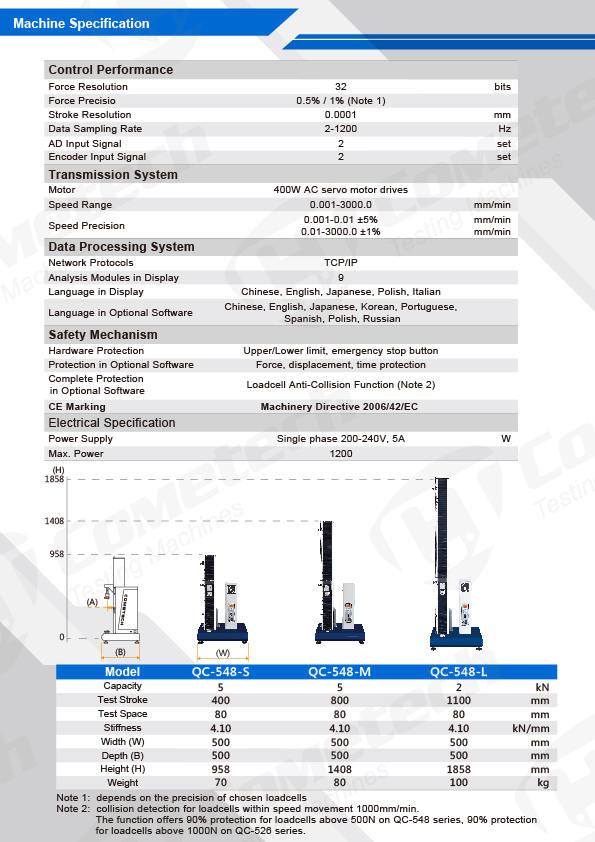

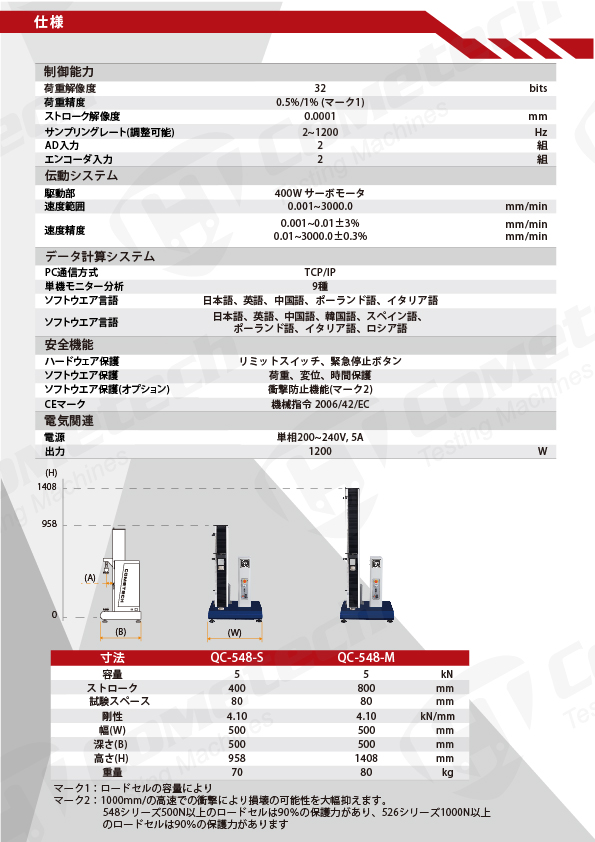

Model QC-548M2F-S QC-548M2F-M
Max. Capacity 5 kN
Units Force: gf, kgf, lbf, N, kN, ozf, tonf(SI), ton(long), tonf(short)
Pressure: Kpa, Mpa, psi, bar, mm-Aq, mm-Hg
Force Resolution 1/100,000 (31 bits)

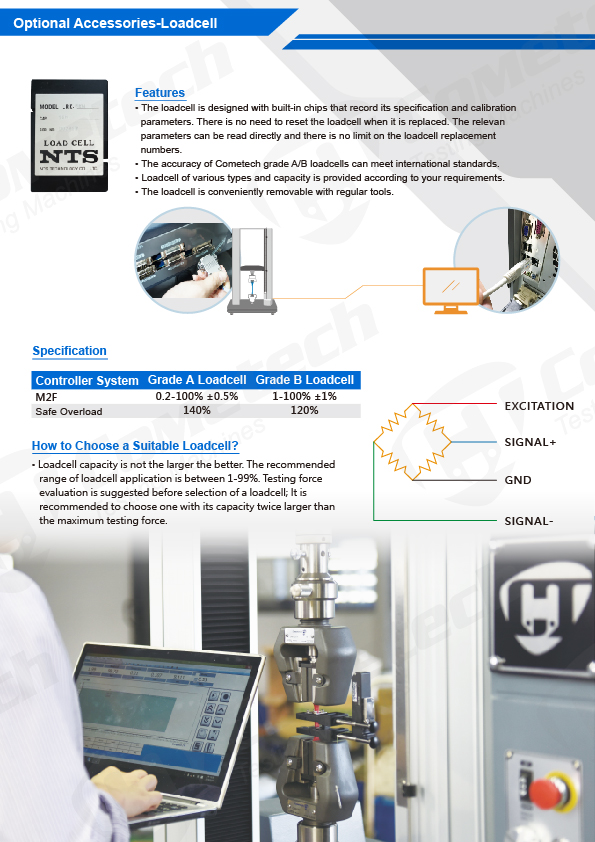

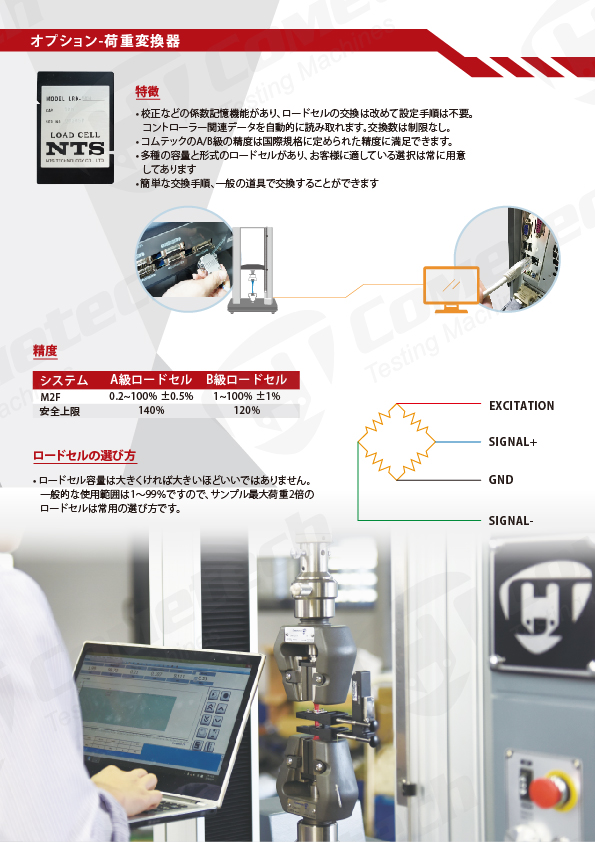

Load cell accuracy ±1% under the range 2-100% of the load cell capacity
(There are optional load cells with higher accuracy)
Test Stroke(w/o grip) 400 mm 800 mm
Stroke Resolution 0.0001 mm
Speed Range Low Speed Mode : 0.0005~9mm/min
High Speed Mode : 0.5~3000mm/min
Speed Accuracy ±1%
Data Sampling Rate Max.1200Hz
Space Between Columns 80 mm
PC-Port RJ45(TCP/IP)
Motor Type Servo Motor
Frame Stiffness 4.1 kN/mm
Hardware protection Upper/lower limits, emergency stop button
Power Supply Single Phase, 200 ~ 240VAC,5A
Dimension 50X50X105cm 50X50X145cm
Weight 65 kgf 80 kgf

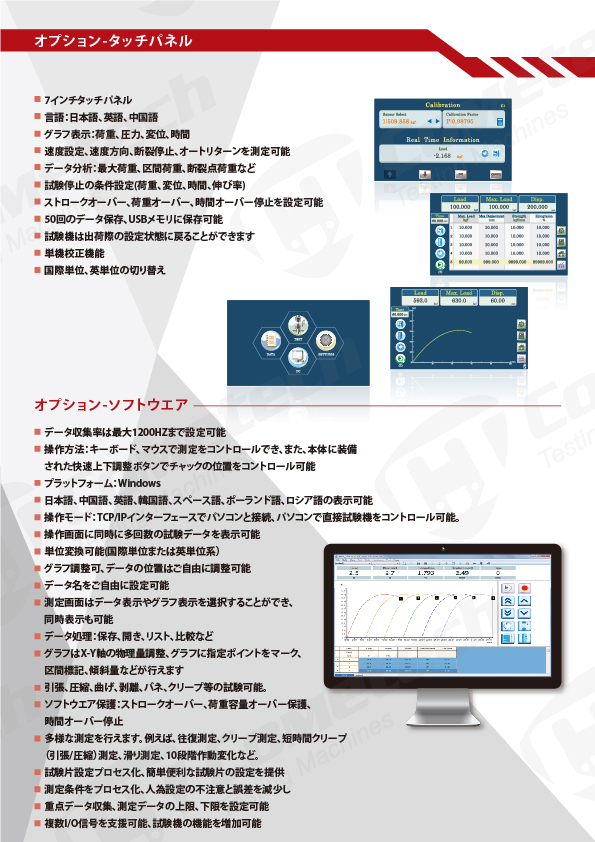

1.7- inch of TFT colored touch screen
2.Chinese, English, Japanese available
3.Data display: Force, stress, torque, displacement, time
4.Test setting can be adjusted: test speed, test direction, automatic return, stop at breaking point and so on
5.Data analysis: Maximum force, interval force, force at breaking point and so on
6.Settings to stop machine: Force, displacement, time, elongation
7.Up to 50 data can be saved by USB
8.Machine can be stopped at excessive displacement, capacity and time
9.Machine can be rebooted
10.Unit can be metric or imperial
11.Multiple signals can be admitted
12.Calibration on stand-alone mode

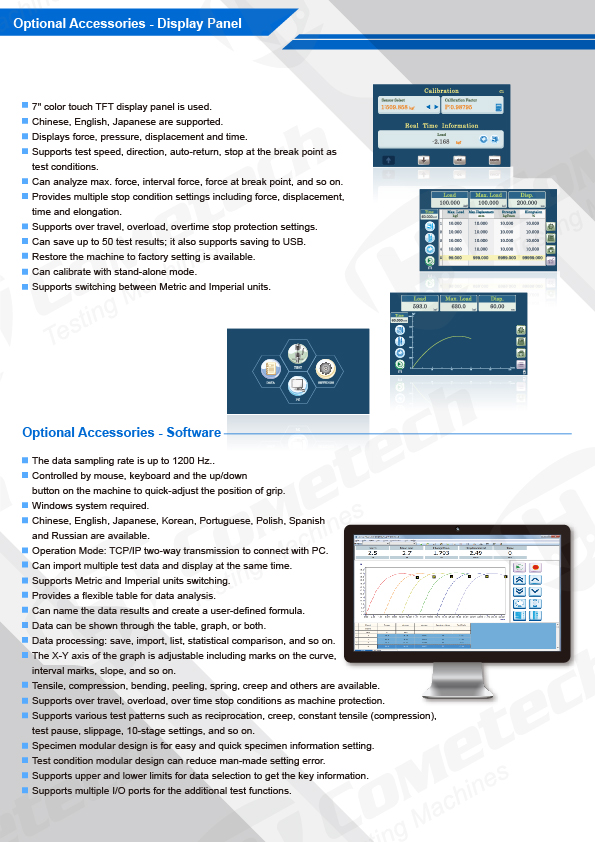

(2) Optional Accessories - Software Functions

1.Controlled by mouse and keyboard. Grips can be moved by up/down buttons on the machine
2.Chinese, English, Japanese, Korean, Spanish, Polish, Portuguese available
3.Operation: TCP / IP two-way transmission. Machine controlled directly through PC
4.Data’s name can be modified and formula can be created
5.Data can be shown through table, graph or both
6.Multiple test data can be shown at the same time
7.Flexible test table for user’s preference
8.Compatible with Window 7/8/10
9.Data sampling rate up to 1200 Hz
10.Modularization of specimen data
11.Unit can be metric or imperial
12.Multiple I/O signals can be admitted

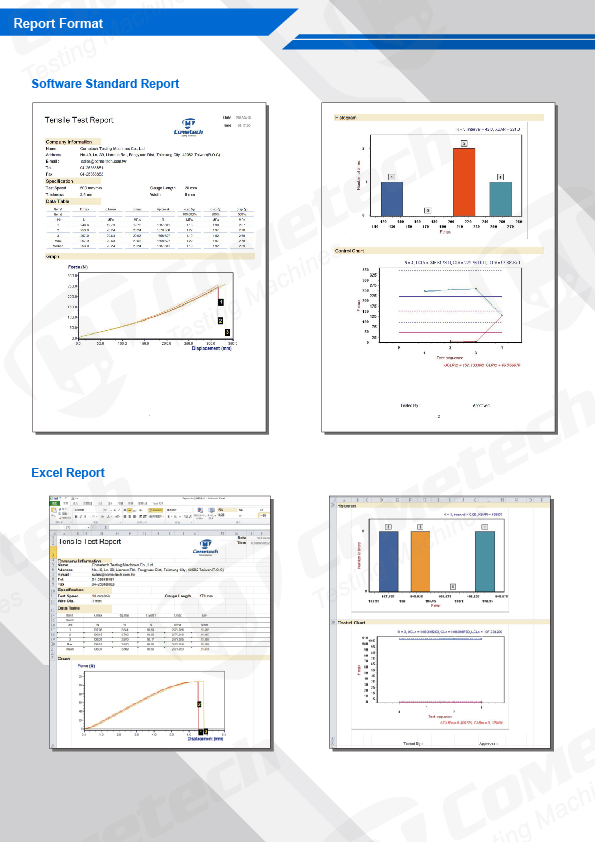

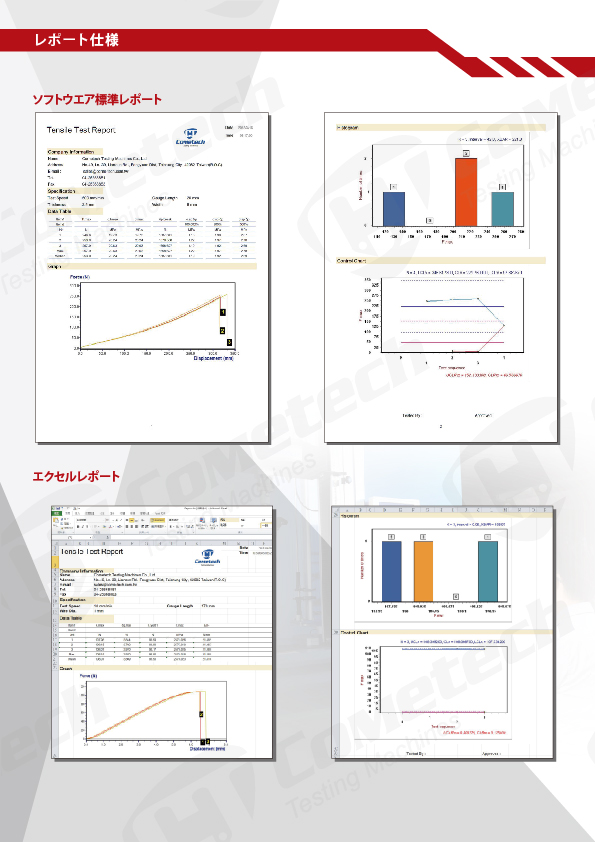

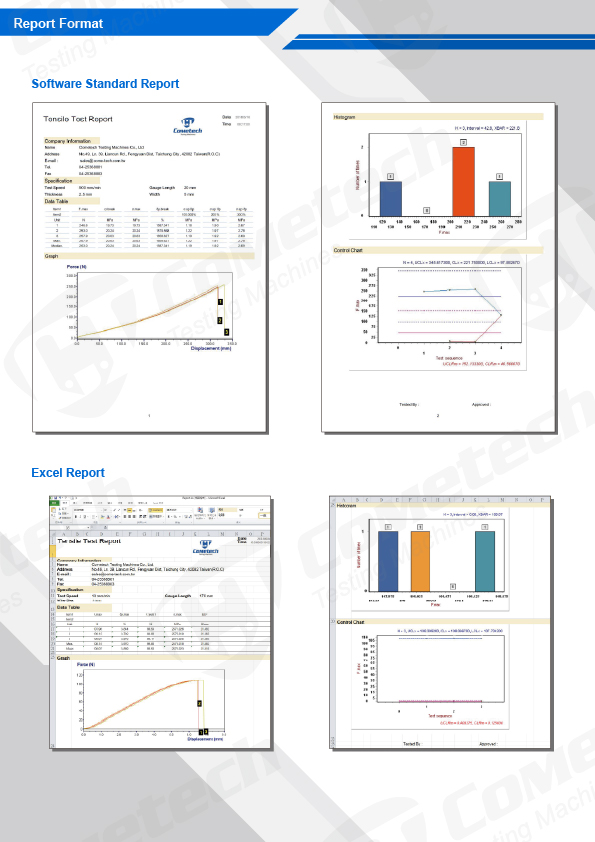

13.Data processing: Save, call, list, statistical comparison, etc.

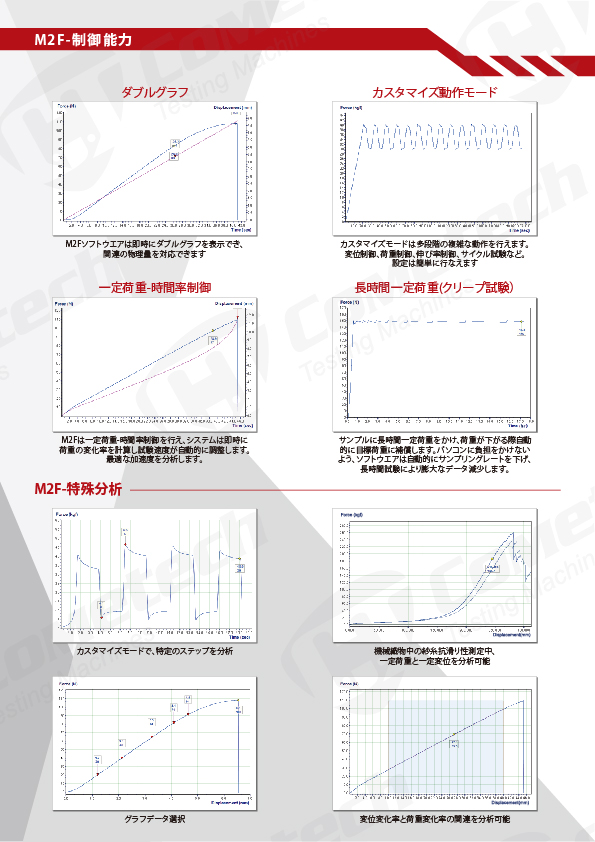

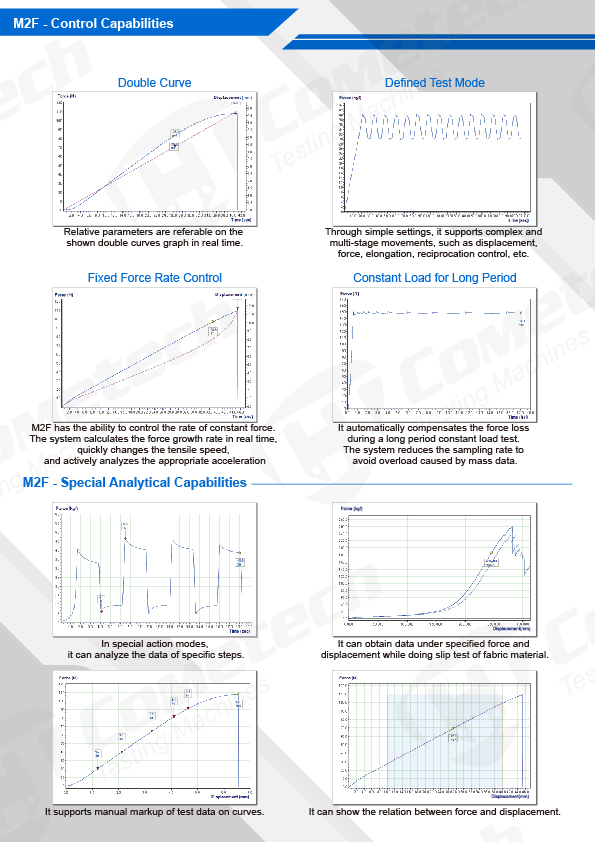

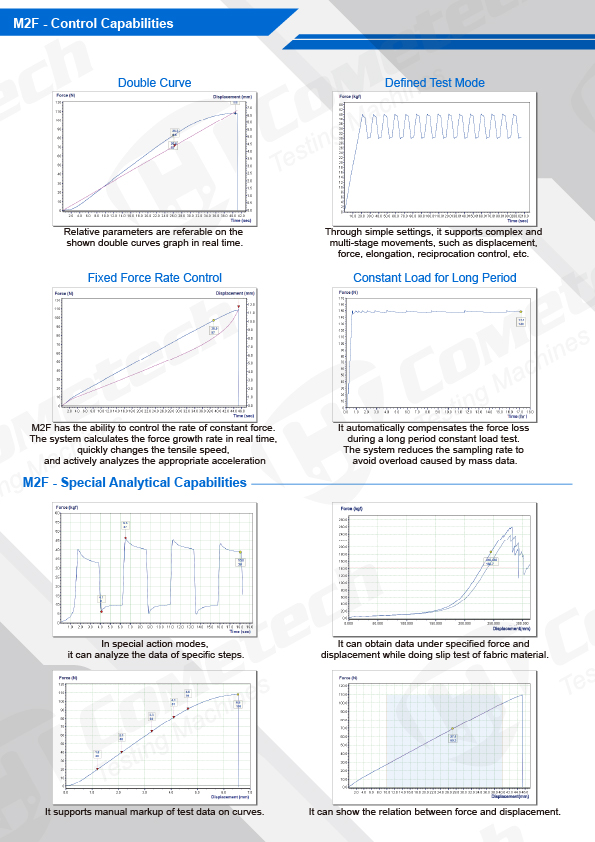

14.Graph’s parameter on X-Y axis can be adjusted: point marked on curve, interval marked, slope
15.Tensile, compression, bending, peeling, spring, creep and other tests available
16.Protection from excessive displacement, capacity and time by software setting

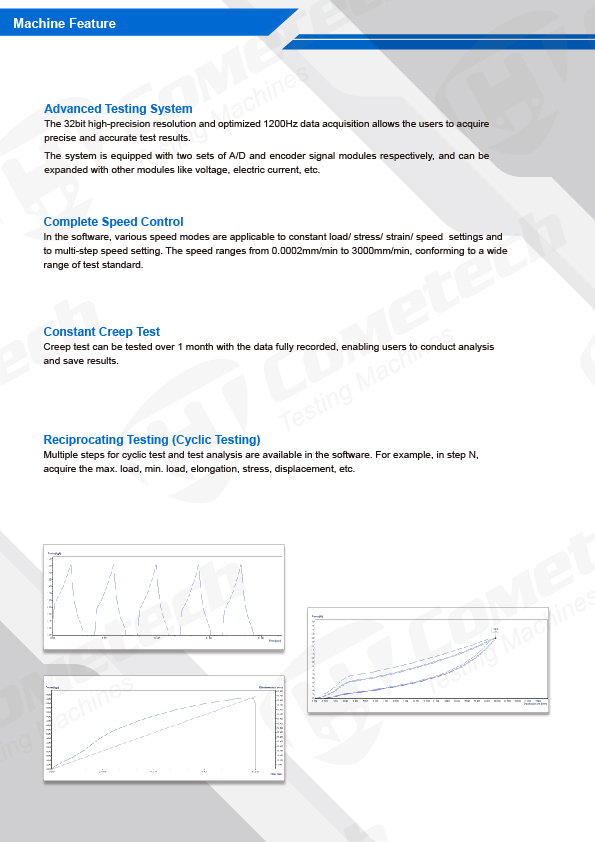

17.Various test patterns ex. reciprocation, creep, hold tensile (compression), test pause, slip test, etc.
18.Modularization of test conditions to reduce unwanted mistake and errors
19.Upper and lower limits on data settings for useful data

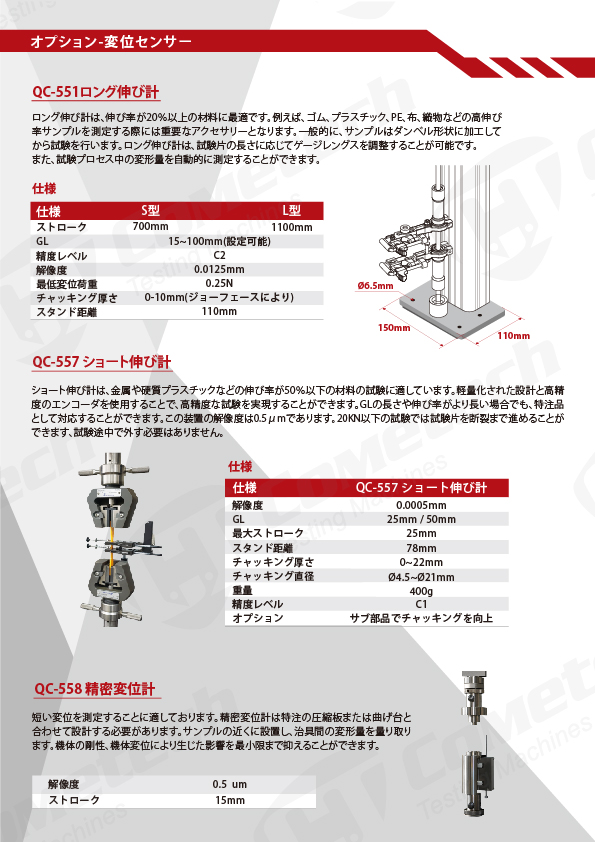

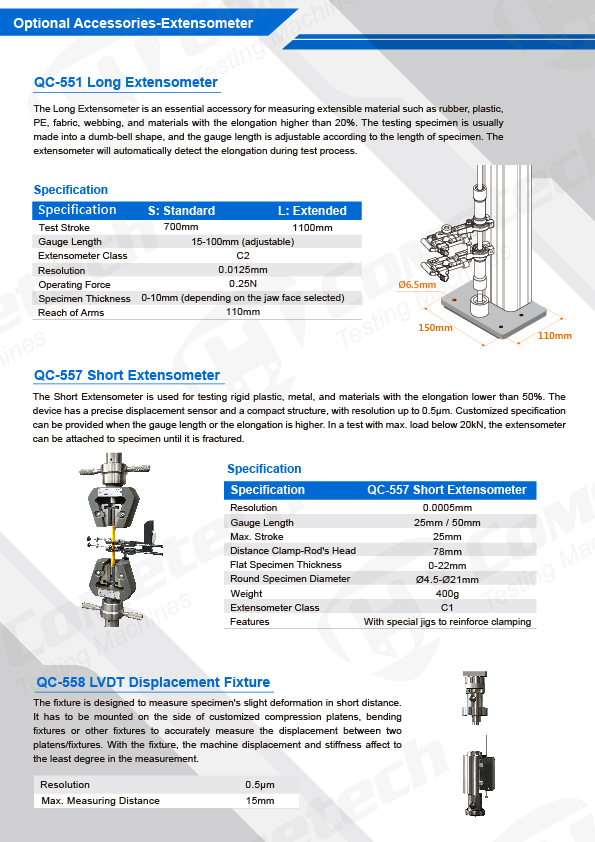

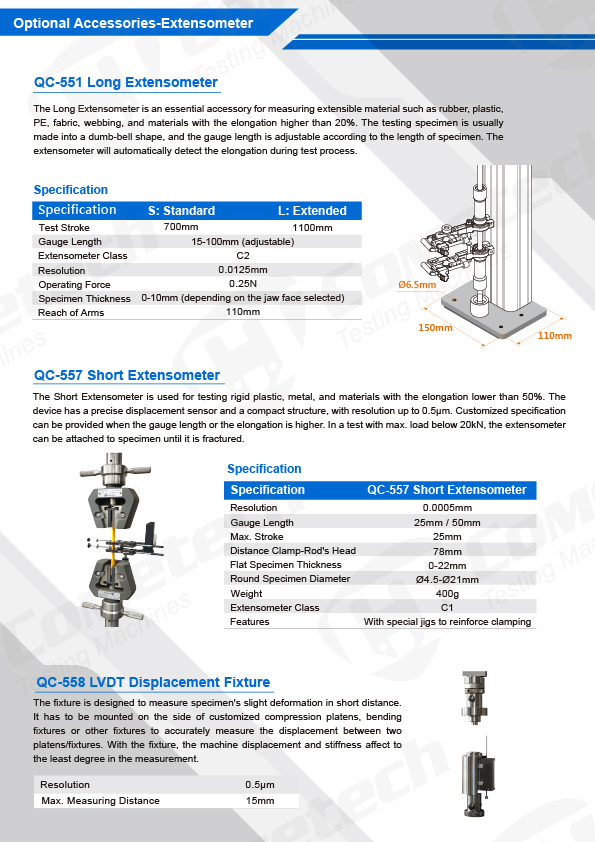

(3) Optional Accessories - Extensometer

QC-557 Short extensometer
Suitable for elongation below 50%

QC-551 Long travel extensometer
Suitable for samples with over 20% elongation



1.Force, displacement, time, stress, and strain display in real time
2.The calibration parameter is recorded automatically in the loadcell. When it is replaced, no adjustment is required.
3.The displacement sensor can be recognized by the controller automatically. When it is replaced, no complicated setting is required.
4.User-friendly test settings: moving direction, force/displacement zeroed automatically, test speed, pause are adjustable.
5.Automatic return after the test
6.Machine protection by force, time, displacement, etc.
7.The jog precisely controls displacement.
8.Optional display is available for stand-alone mode.
9.In user-defined mode, cyclic test and test in a long duration can be achieved.
