Drop Dart Tester

Home / Products / Rubber and Plastic / Drop Dart Tester
Product Serial : QC-633A

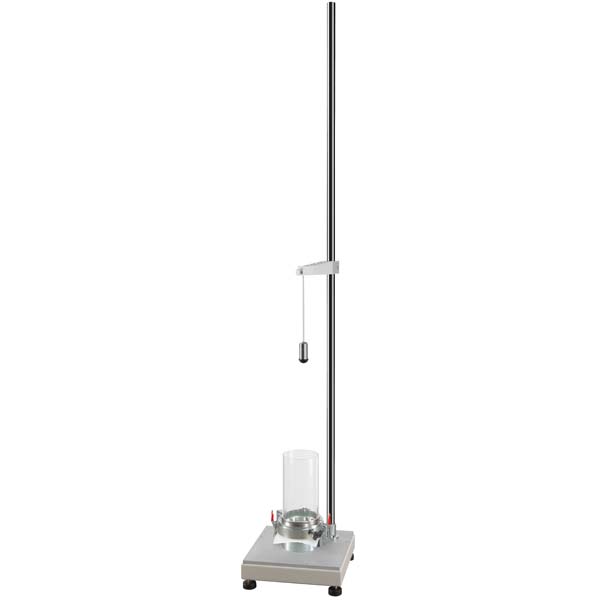

Drop Dart Tester
Confirm to ASTM D1709 GB-9639 Standard

 This tester is according to test standard of method A and method B. The test plastic film is clipped on dia. 127mm of round clamp by very quick pneumatic way. The impact head method A is dia. 38.1mm and method B is dia. 50.8mm. The impact head is fixed on top part of the machine. User should adjust suitable hammer weight and height, and control the electronic magnet to drop the hammer, which make falling impact on film to test its resistance ability. Generally, 20 pcs samples will be tested at a time and be recorded with information of rupture/no rupture, weight, and height. Through this way user can analyze the impact resistance ability of plastic film samples.



Applied Industry: Plastic Film, Packaging



Specimen Gripping Method Pneumatic (air pressure 70~80 psi)
Dart Dropping Method A. Electronic magnet (to efficiently avoid vibration)
B. Manual release
Specimen Frame 127mm
Dart Diameter Ø38.1 mm (Fiber reinforced plastics)
Ø50.8 mm (Stainless steel)
Dart Stick Material Stainless steel
Height Range 300~1750 mm (Adjustable)
Weights 5g x 10、15g x 10、30g x 8、45g x 8、60g x 8、
90g x 8、120g x 8、180g x 3
Dimension 43 x 56 x 218 cm
Machine Weight 45 kg
Power Supply AC 100~240V
