Product Serial : QC-615A

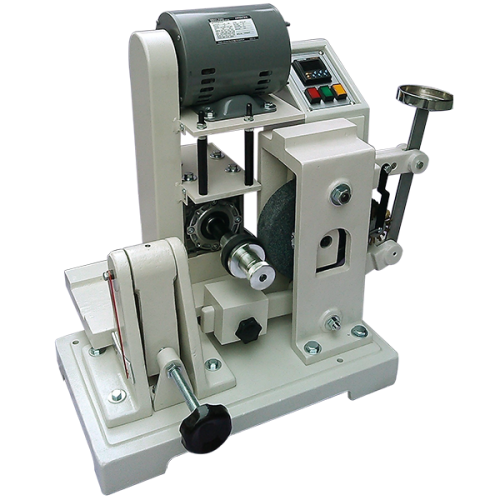

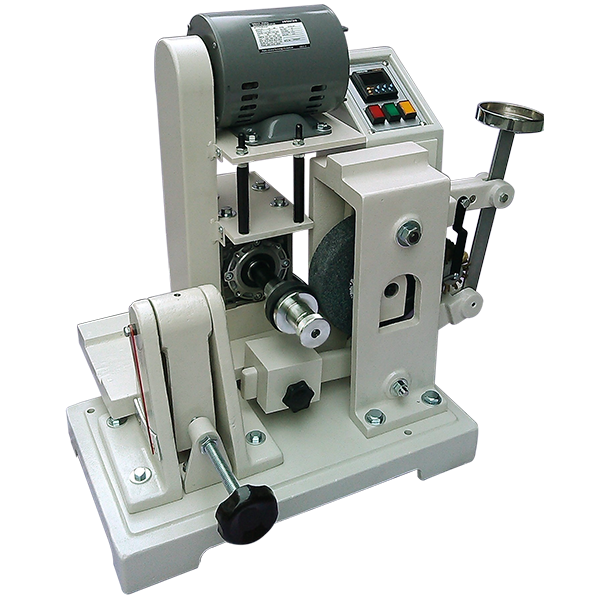

AKRON Abrasion Tester
Confirm to JIS K6264, GB/T1689, BS-903 Standard

QC-615A The specimen of shaft speed is 76rpm which driven grinding wheel rotating about 34 rpm. The specimen outer diameter is 68mm and the thickness is 12.7mm. It can not take round specimen, it also can change thickness 3.2mm and width 12.7mm. The specimen needs to paste even on the rubber wheel to do test. The grinding wheel size: outer diameter is 150mm and thickness is 25mm and grinding wheel 36#. The specimen of shaft and wheel shaft inclined at 15 degrees and plus the normal force of the specimen 26.7N, running 16.61Km measurement volume loss; such as loss smaller than 0.1cm3 dissecting a large inclination angle of 25 degrees.


Industry: Rubber, Shoes

Model QC-615A
Weights 2 pounds and 6 pounds
Testing angle 15° (adjustable)
Grinding wheel #36(#40 available)
Diameter of grinding wheel 150 mm
Counter LCD display, 6 figures, auto-stop
Power Single phase 110V/60 Hz or 220V/50 Hz
Dimension 65 × 45 × 45 cm
Weight 65 kg
