Product Serial : QC-639R (U)
Computerized Impact Tester
Confirm to ISO13802、 DIN53453、ASTM D256、 ISO180 、ASTM D6110 、ISO179 Standard
Computerized impact tester can be used to determine impact resistance of polymers. It use the energy conversion to calculate the energy absorbed by the sample after impact. The precise of impact hammer will highly affect the center position of its mass and impact speed, which in turn influence the test accuracy. QC-639R/U can lift and release the impact hammer automatically for better test efficiency and operator safety. It is equipped with 7" touch screen. It uses encoder to detect the angle for calculating the energy and has built-in correction system for the loss causing by the friction of wind resistance. For increase the test precise, there is an optional dedicated software to analyze, record and generate report and so on. Izod/Charpy is the most common methods. QC-639R/U can support to change the impact hammer and vise rapidly to satisfy different test condition and standards (ASTM & ISO).

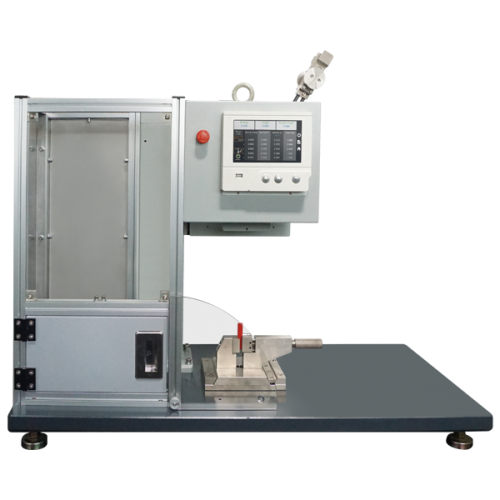

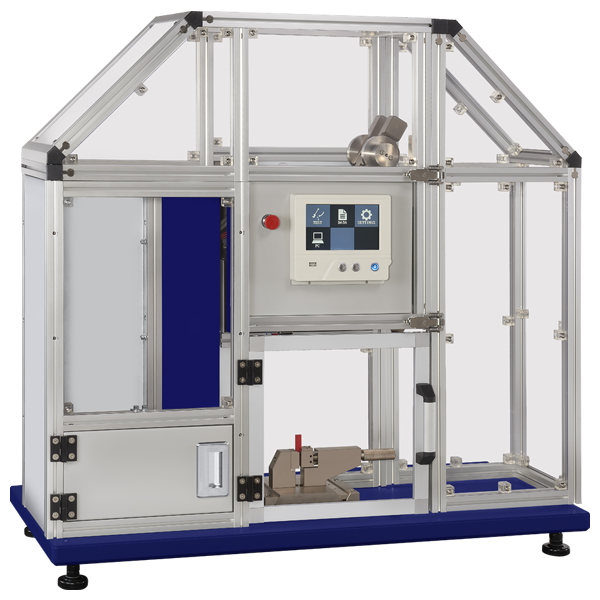

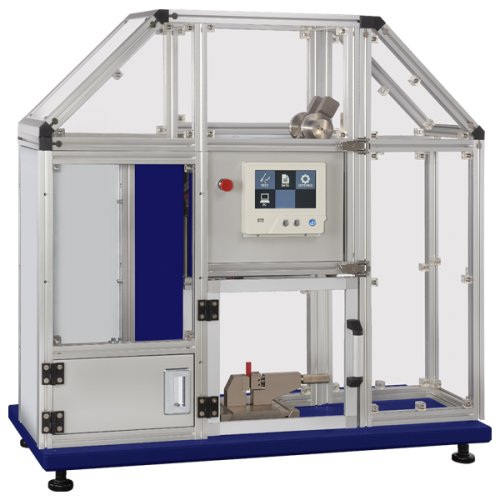

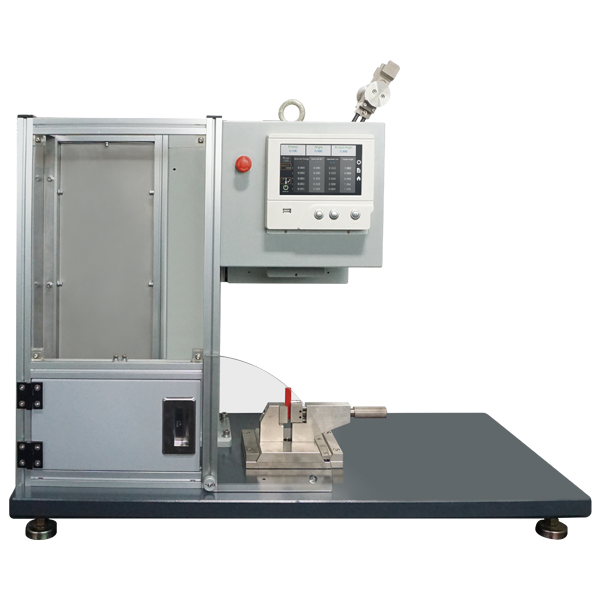

Model QC-639R QC-639U
Test Method IZOD、CHARPY
Initial angle 150°
Test capacity

Izod 1~25J
ASTM Charpy 1~25J
ISO Charpy 1~5J

Izod 1J-50J
Charpy 1J-50J

20-80% of the max. capacity is the suggested test range.
Angle Min. display angle is 0.05 degree.
Operation 1. With 7" touch screen to show the impact energy value.
2. Able to save over 50 results.
3. The vise has position mechanism to ensure the sample position.
4. Able to change vises for Izod/Charpy to satisfy different test standards.
5. Provide multi-unit to display.
6. Auto lift and release functions.
7. Safety door sensor.
Accessories Calibration table for hammer, Manual, Hex Wrench Set
Optional Items

1. Impact hammers for different energy test and different vises
2. QC-640 Impact Specimen V-notcher
3. Optional analysis software

Power Supply 110~240V / 5A
Dimension Full Cover 110 x 50 x 110 cm
Half Cover 110 x 50 x 77 cm
Full Cover 114 x 50 x 117 cm
Half Cover 114 x 50 x 84 cm
Weight Full Cover 140 Kg
Half Cover 110 Kg
Full Cover 400 Kg
Half Cover 370 Kg

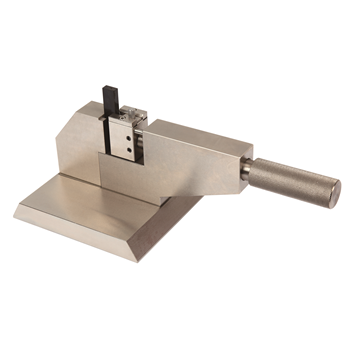

Izod Vise / Vise for Izod test

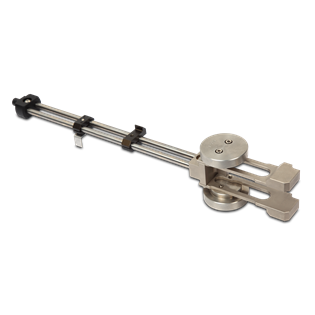

Izod Hammer / Hammer for Izod test


Charpy Vise / Vise for Charpy test

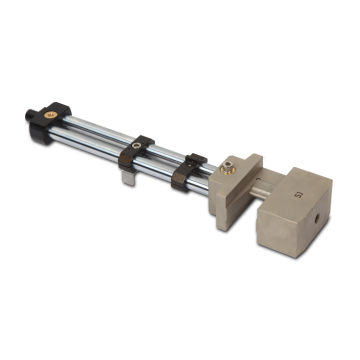

Charpy Hammer / Hammer for Charpy test

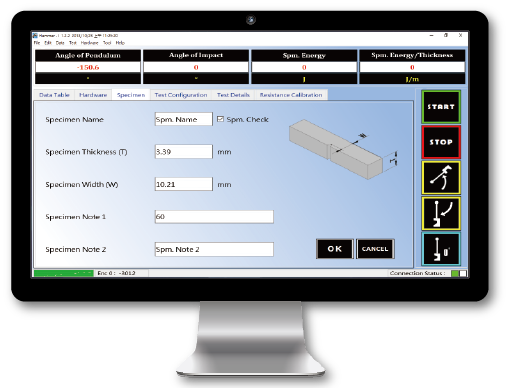

1. Data Information: able to save with USB
2. Test Setting: with built-in ISO and ASTM standards, support the test by changing the relative impact hammers and vises.
3. to check the resistance and do the loss energy correction.
