Product Serial : QC-639S、QC-639T

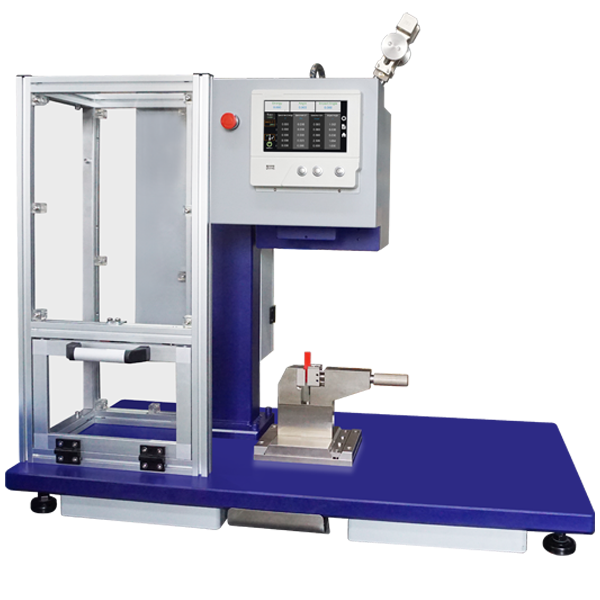

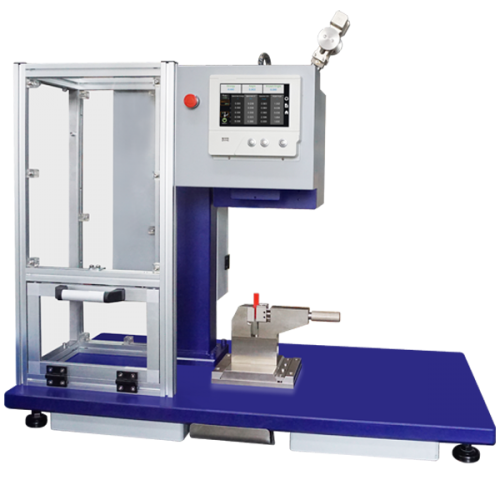

Digital Impact Tester
Confirm to ASTM D256、ASTM D6110、ISO179、ISO180、ISO13802 Standard

Small capacity pendulum type impact testing equipment, it is usually be used in high polymer material impact strength test, use potential energy of pendulum to impact specimen, analyze the remaining potential energy after impact to calculate specimen absorbed energy during test.

It has big correlation between pendulum mass, length, rigidity and so on accuracy and test precision, especially pendulum mass center position will affect impact speed and produce test error. This type impact tester is provided with digital display to show angle, energy, other functions and in-build wind resistance, frictional loss automatic calculated formula, users can easily and convenient to use.

IZOD / CHARPY are two types of common tests; QC-639S/T can be carried out test in different test methods by replacing pendulum and vise type. Machine is fitted simple specimen collection area that provide user safer test environment.



Industry : Plastic

Model QC-639S QC-639T
Test Method IZOD、CHARPY
Initial angle 150°
Test capacity

Izod 1-11J
ASTM Charpy 1-11J
ISO Charpy 1-5J

Izod 1J-25J / Charpy 1J-25J(50J (optional))

Best test range : 20 ~ 80% of the pendulum capacity
Angle Min. display angle is 0.05 degree.
Energy Accuracy 0.01J
Operation 1. With 7" touch screen to show the impact energy value.
2. Able to save over 50 results.
3. The vise has position mechanism to ensure the sample position.
4. Able to change vises for Izod/Charpy to satisfy different test standards.
5. Provide multi-unit to display.
Accessories Calibration table for hammer, Manual, Hex Wrench Set
Optional

※Related energy test pendulum and various type of test vise.

※QC-640 V-shape specimen Notching Machine

※Analysis software

Power Supply 110~240V / 3A
Dimension Full Cover 90 x 36 x 102 cm
Half Cover 90 x 36 x 84 cm
Full Cover 110 x 50 x 117 cm
Half Cover 114 x 50 x 84 cm
Weight Full Cover 140 Kg
Half Cover 110 Kg
Full Cover 400 Kg
Half Cover 370 Kg
Izod Vise / Vise for Izod test
Izod Hammer / Hammer for Izod test


Charpy Vise / Vise for Charpy test

Charpy Hammer / Hammer for Charpy test

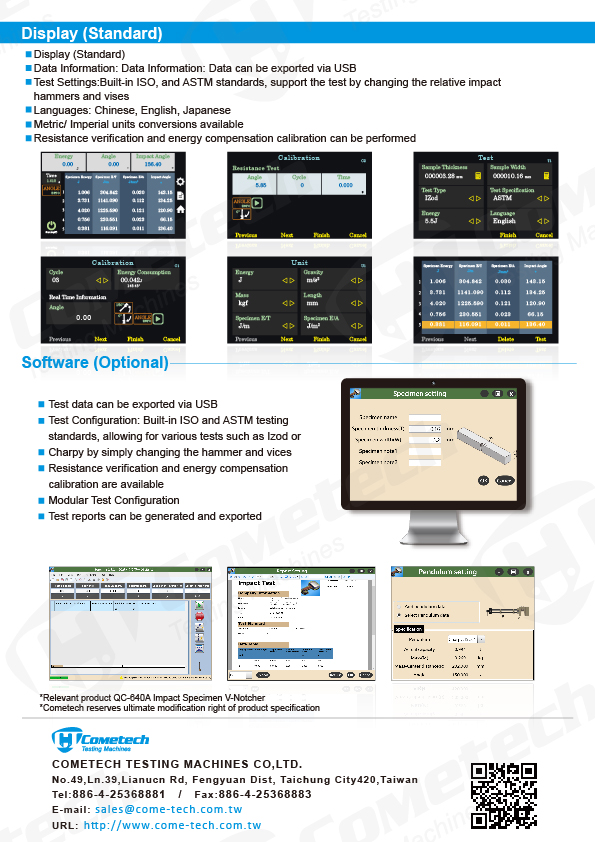

1. Data Information: able to save with USB
2. Test Setting: with built-in ISO and ASTM standards, support the  test by changing the relative impact hammers and vises.
3. to check the resistance and do the loss energy correction.
