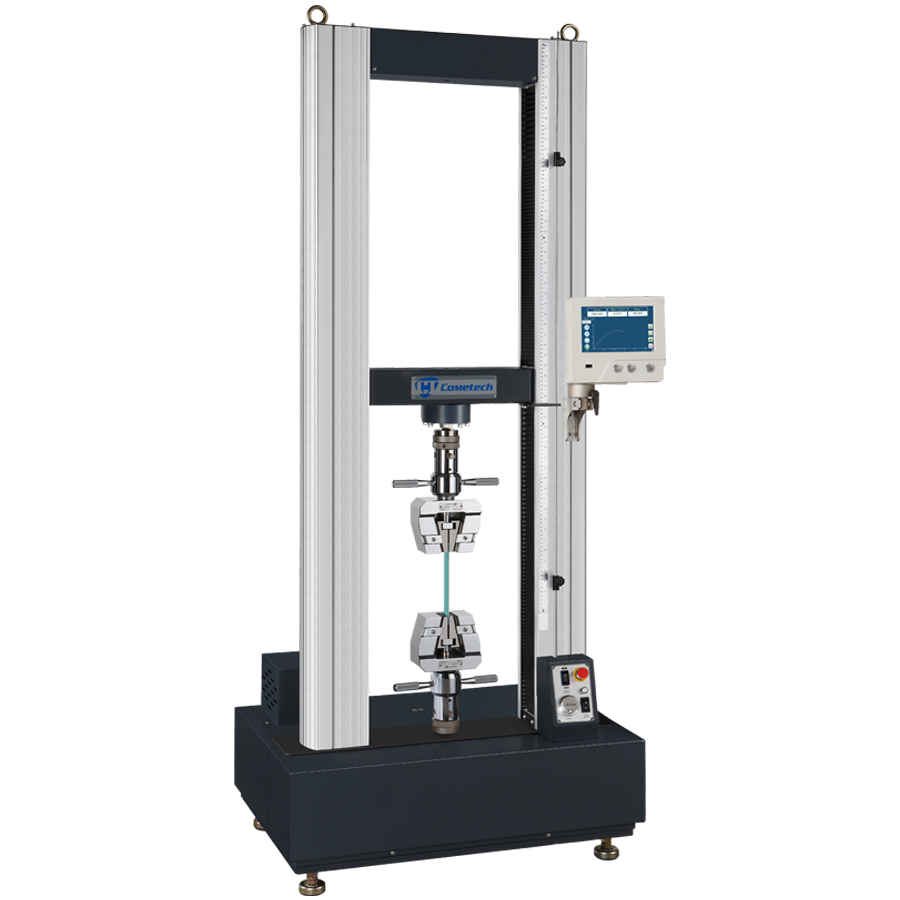

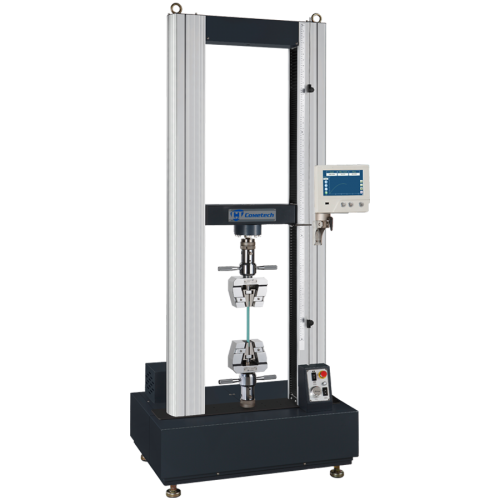

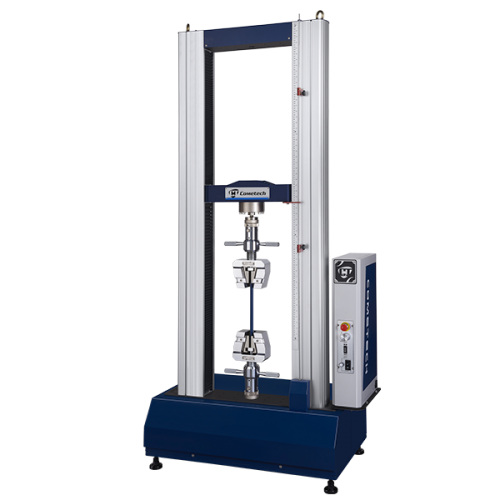

Product Serial : QC-505M2F (50kN)
UNIVERSAL materials testing machine
Confirm to ISO 7500-1, ASTM E4 , ASTM D-76, DIN5122 , JIS B7721/B7733 , EN 1002-2, BS1610,GB T228 Standard
QC-505M2F has large test space and long stroke, the maximum test capacity is 50kN.Maintenance-free transmission mechanism to reduce machine maintenance problems and in the same time it provides a quiet test environment and high-precision test results. The machine has single-separated electric control box, separate electronic control system to avoid interference with the transmission components to increase test stability and also conducive to the maintenance and updating of electronic systems.
Supportprecisionjogwheel can befine tuning machine movement, with precision positioning and accurate calibration to increase test accuracy. High-speed signal feedback mechanism can reduce the chance of machine overload. The reserved external signal can be connected to an external signal source, increasing machine control mode.
Industry：Rubber, Plastic, Paper, Textile, Metal, Wood, Tape, Electron, Package, Medical, Architecture

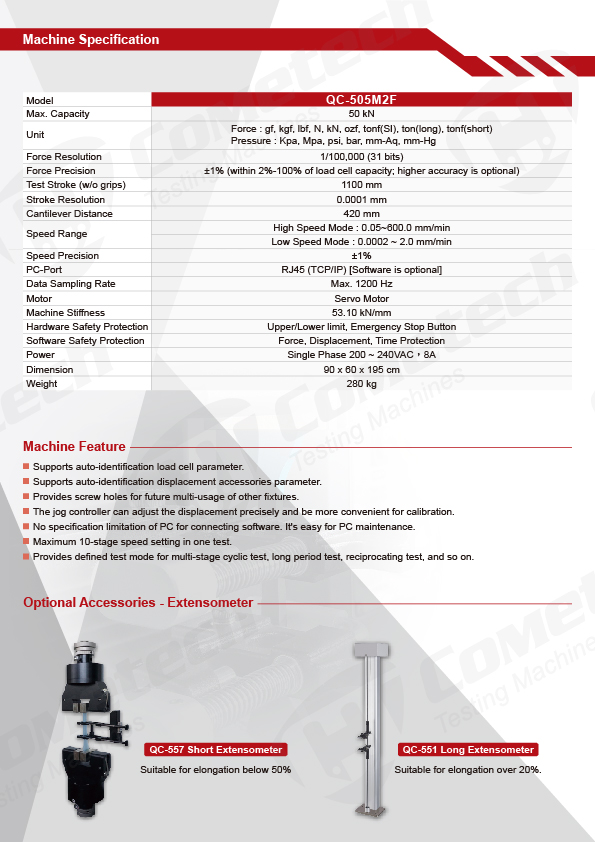

| Model |
QC-505M2F |
| Max. Capacity |
50kN |
| Units |
Force: gf, kgf, lbf, N, kN, ozf, tonf(SI), ton(long), tonf(short)
Pressure: Kpa, Mpa, psi, bar, mm-Aq, mm-Hg
|
| Force Resolution |
1/100,000 (31 bits) |
| Load cell accuracy |
±1% under the range 2-100% of the load cell capacity
(There are optional load cells with higher accuracy) |
| Test stroke(w/o grip) |
1100mm |
| Stroke resolution |
0.0001 mm |
| Space between columns |
420 mm |
| Speed accuracy |
±1% |
| Speed range |
High speed mode |
| 0.05 ~ 600mm/min |
| Low speed mode |
| 0.0002~2 mm/min |
| PC-Port |
RJ45(TCP/IP)(Connect software optional) |
| Data sampling rate |
1200Hz (Max.) |
| Hardware safety protection |
upper limit, lower limit, emergency stop button |
| Motor type |
Servo Motor |
| Frame Stiffness |
120 kN/mm |
| Feature |
※Automatic reading of load cell feature information
※Automatic reading ofdisplacement sensor feature information
※force display, displacement display, time display, stress display and strain display
※External analog input (2-channel simultaneous reading of voltage or current)
※Test force automatically zero
※Test force self-defined calibration
※Break detection
※Automatic return
※Force overload protection
|
| Power Supply |
Single phase 200V-240 V, 8A |
| Dimension of Machine |
105 x 60 x 195 cm |
| Weight of Machine |
360kgf |
(1) Grip& Load Cell
Each test will require different test grips and accessories for the plastics, metal, biomedical, composite, elastomer, component, automotive, aerospace, textile and other applications industries.
★Tensile grip
★Compression grip
★Bending grip
★Peeling/Tearing grip
★Film friction grip
★Load cell

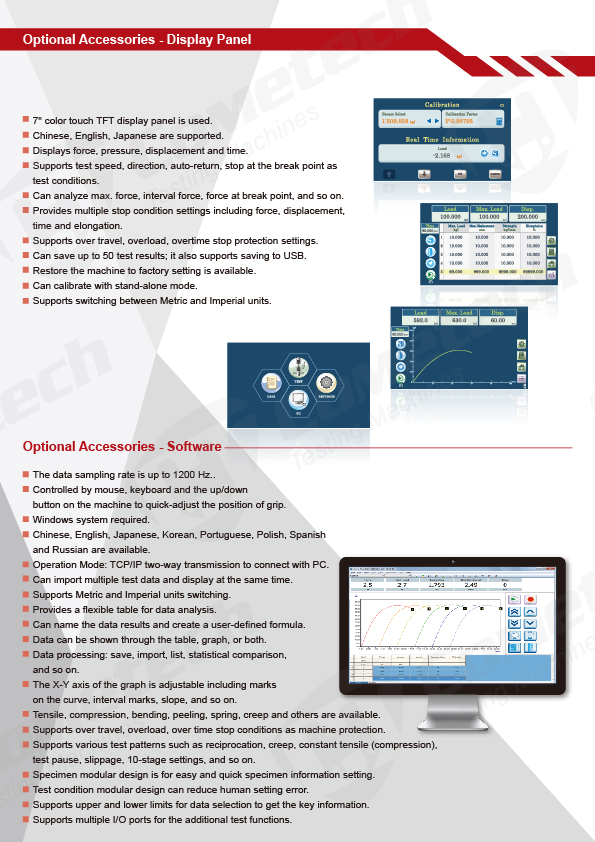

(2) Displayer
1. Adopted with 7- inch of TFT Color touch screen
2. Chinese, English, Japanese, Three different languages can be selected.
3. Data Display: Force, Stress, Torque, Displacement, Time
4. Test setting, can set test speed, test direction, automatic position return, breaking point machine stop.
5. Data analysis, can read the maximum force, internal force, breaking point force and so on.
6. Can be stand-alone calibration.
7.Various machine shutdown conditions setting (force, displacement, time, elongation).
8.Can be restored to the original factory state.
9.Unit selection can be Metric unit, Imperial units
10.Over-travel, overload protection and overtime machine stop
11.Can store up to 50 data, USB storage data function.
12.Support multiple sets of signal sources.
(3) Extensometer
|
|
|
 |
QC-557 Short extensometer
Suitable for elongation below 50% |
|
QC-551 Long travel extensometer
Suitable for samples with over 20% elongation
|

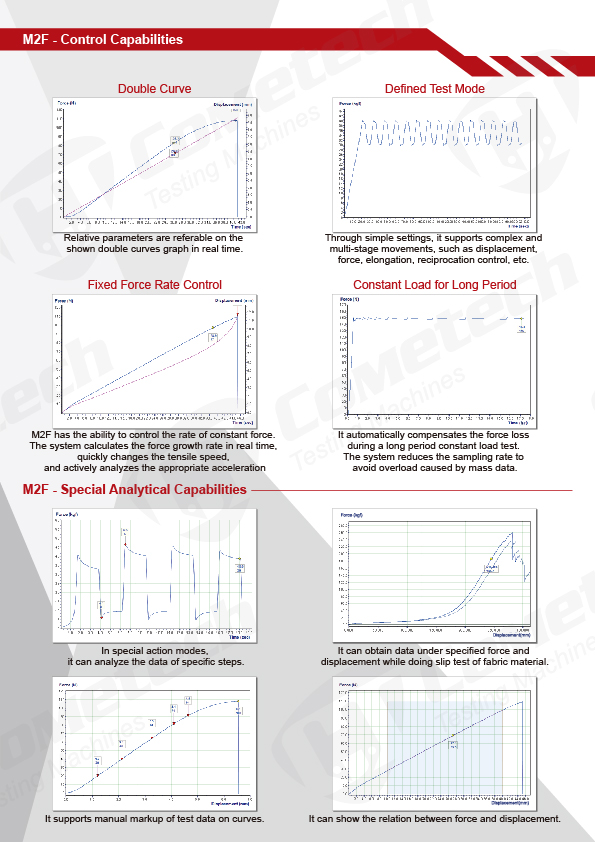

1. Data sample rate faster can be set up to 1200 Hz
2. Operation method:Full-computerized control to run the test or Jog button control
3. Compatible with Window 7 /8 system
4. Software has multi-languages.
5. Interface for TCP/IP
6. Multi-curves display and real-time plot
7. Various units of measurement are available
8. Flexible form to manage database.
9. Free to name the data file.
10. Testing screen is selective to display data, graph at the same time.
11. Data processing: file saving, setting loading, report printing and data comparing.
12. Graph display: strain v.s. elongation, strain v.s. time and so on.
13. Tensile test, compression test, bending test, peel test…
14. Software protection: Overload, over -displacement ,over-time protection
15.Variety of test actions, ex.reciprocation, creep, hold tensile (compression), test pause, slip test, etc.
16.Modularization of specimen setting, providing easy to set specimen.
17.Modularization of test conditions to reduce artificial settingnegligence and error.
18.Key data capture, can set the upper and lower limits of test data specifications
19.Support multiple sets of I / O signals, increase testing mechanism
| (1)Software interface |

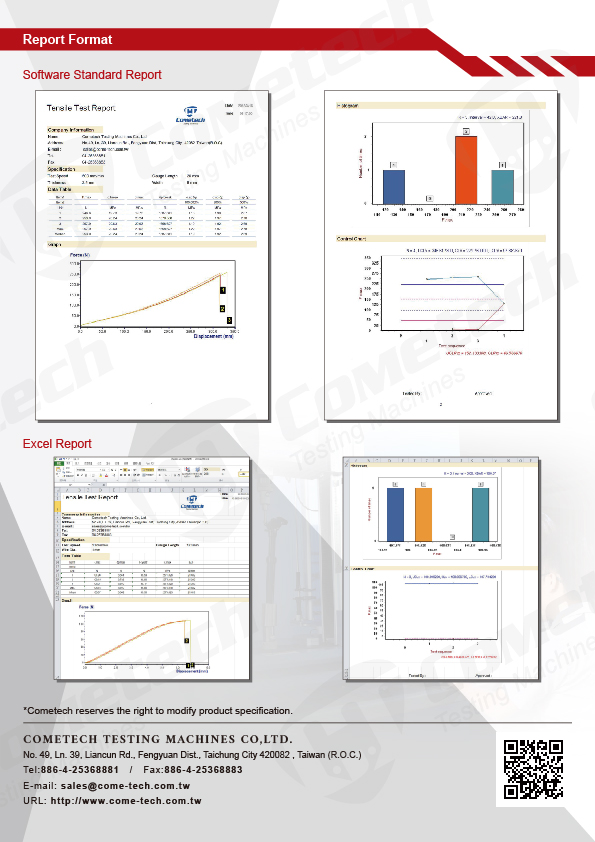

(2)Report |
 |
|
*Cometech reserves ultimate modification right of product specification.
