Product Serial : QC-505M1F (50kN)

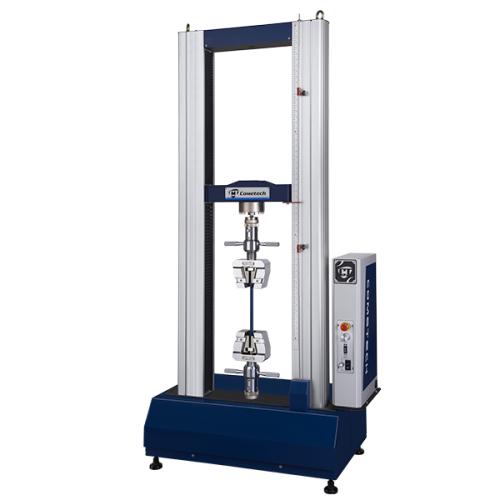

Computerized Tensile (compression) testing machine
Confirm to ISO 7500-1, ASTM E4 , ASTM D-76, DIN5122 , JIS B7721/B7733 , EN 1002-2, BS1610,GB T228 Standard

Floor type machine have two testing spaces, the maximum test capacity is 50 Kn. With high rigidity structure and Maintenance-free servo motor drive components, can provide stable operation of the machine.

Standardized design of the machine can collocate a variety of accessories for different types of testing. Also provide the quiet testing environment and high accuracy test result.

Go with Cometech specialist M1F testing software which is used Windows 7/8/10 of Person computer. It can do tensile test, compression test, bending test and all kind of tests. The software with multi-languages is very easy to operation. It also has all kind of metric units, real-time graphs and also provides complete analysis test data which finish test can do variety of material analysis.

Industry:Plastic, Textile, Metal and Architecture

Inquiry

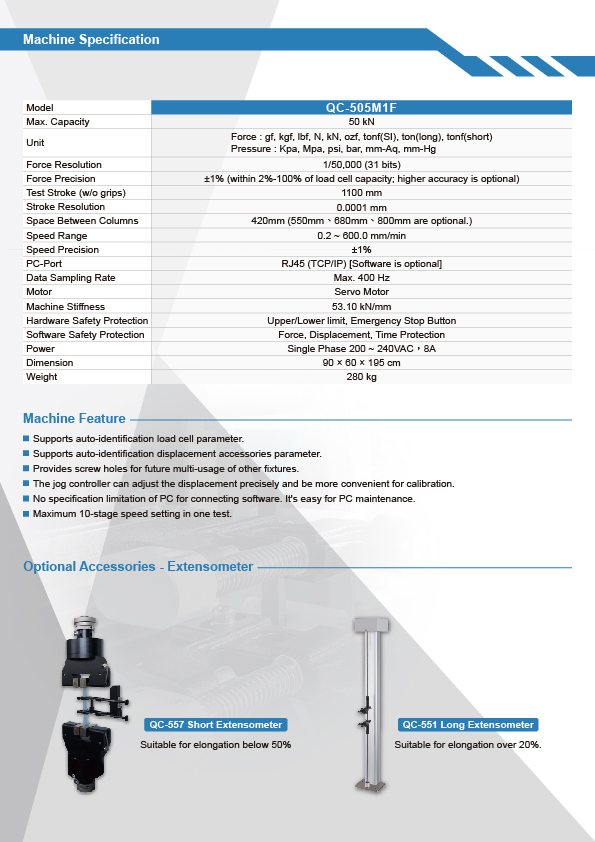

Model QC-505M1F
Max. capacity 50 kN
Units Force: gf, kgf, lbf, N, kN, ozf, tonf(SI), ton(long), tonf(short)
Pressure: Kpa, Mpa, psi, bar, mm-Aq, mm-Hg
Force Resolution 1/50,000 (31 bits)
Load cell accuracy ±1% under the range 2-100% of the load cell capacity
(There are optional load cells with higher accuracy)
Test stroke(w/o grip) 1100mm
Stroke resolution 0.0001mm
Space between columns 420mm(550mm、680mm、800mm Optional)
Speed range 0.2~ 600mm/min（Can be set by computer digital）
PC-Port RJ45(TCP/IP)[Software Optional]
Data sampling rate Max. 400Hz
Hardware safety protection upper limit, lower limit, emergency stop button
Motor type Servo Motor
Frame Stiffness 120 kN/mm
Feature ※Automatic reading of load cell feature information
※Automatic reading ofdisplacement sensor feature information
※force display, displacement display, time display, stress display and strain display
※External analog input (2-channel simultaneous reading of voltage or current)
※Test force automatically zero
※Test force self-defined calibration
※Break detection
※Automatic return
※Force overload protection
Power Supply Single phase 200 ~ 240VAC，8A
Dimension of Machine 90× 60 × 195 cm
Weight of Machine 280 kg

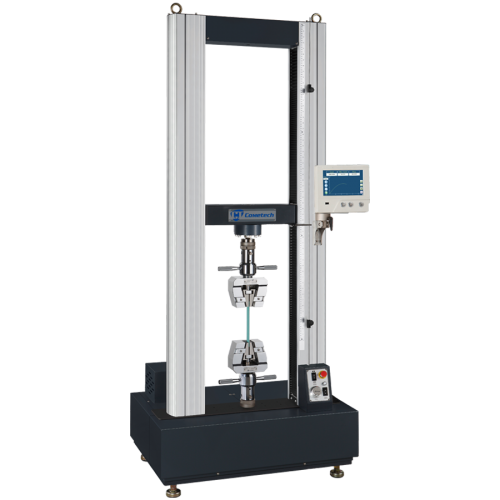

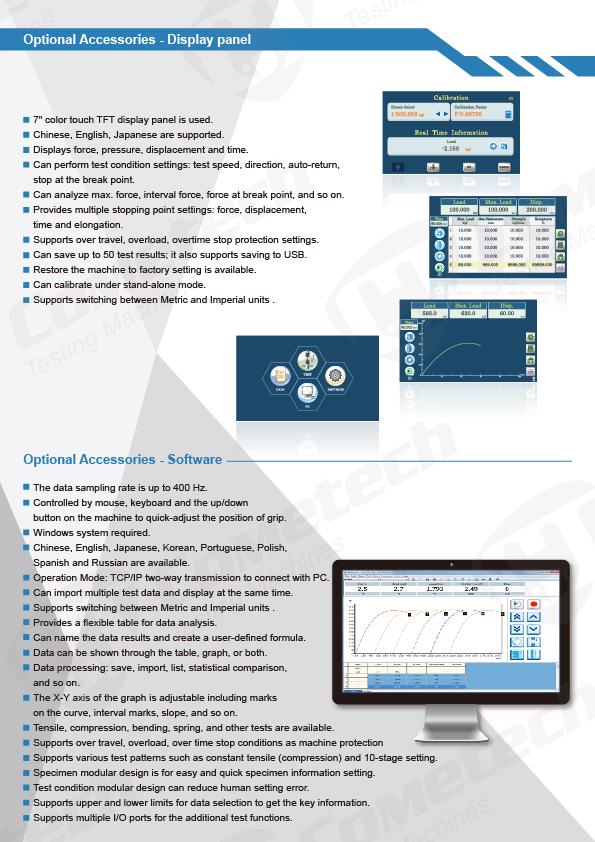

(1) Displayer

1. Adopted with 7- inch of TFT Color touch screen.
2. Chinese, English, Japanese, Three different languages can be selected.
3. Data Display: Force, Stress, Torque, Displacement, Time.
4. Test setting, can set test speed, test direction, automatic position return, breaking point machine stop.
5. Data analysis, can read the maximum force, internal force, breaking point force and so on.
6. Can be stand-alone calibration.
7. Various machine shutdown conditions setting (force, displacement, time, elongation).
8. Can be restored to the original factory state.
9. Unit selection can be Metric unit, Imperial units.
10. Over-travel, overload protection and overtime machine stop.
11. Can store up to 50 data, USB storage data function.
12. Support multiple sets of signal sources.



(2) Extensometer






QC-557 Short extensometer
Suitable for elongation below 50%

QC-551 Long travel extensometer
Suitable for samples with over 20% elongation





1. Data sample rate faster can be set up to 400Hz.
2. Operation method: By keyboard and mouse control test, can also through up and down button to adjust the fixture position.
3. Compatible with Window 7 /8 /10 system.
4. Software has multi-languages with Chinese, English, Japanese, Korean, Spanish and Polish display.
5. Operating mode: TCP/IP interface, two-way transmission, the computer directly control the machine action.
6. Can import multiple test data display simultaneously..
7. Unit selection can be Metric unit and Imperial units.
8. Form flexibility, self-planning information analysis.
9. Data name can be self-set and can self-defined formula.
10. Test Screen can be selected data display, graphic display or simultaneous display.
11. Data processing: store, call, list, statistical comparison, etc.
12. Graph X-Y axis physical quantity adjustment, graph-specific mark, interval mark, slope and son on.
13. Test tensile, compression, bending, peeling, spring and other tests.
14. Software protection: Overload, over -displacement, over-time protection.
15. Variety of test actions,，Ex. Tensile (compression)、10 grades of the actions.
16. Modularization of specimen setting, providing easy to set specimen.
17. Modularization of test conditions to reduce artificial setting negligence and error.
18. Key data capture, can set the upper and lower limits of test data specifications.
19. Support multiple sets of I / O signals, increase testing mechanism

(1)Software interface (2)Report

*Cometech reserves ultimate modification right of product specification.
