Stand Holder

Home / Products / Rubber and Plastic / Stand Holder
Product Serial : QC-GSA

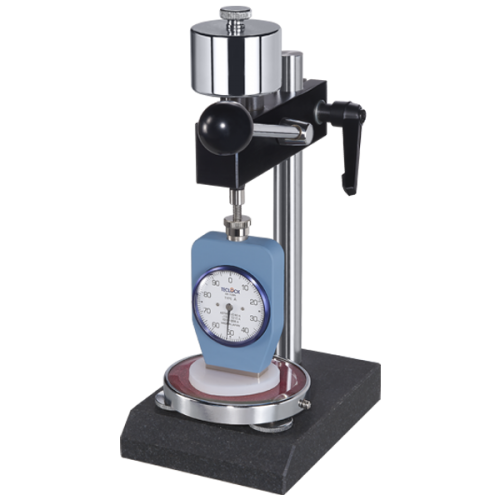

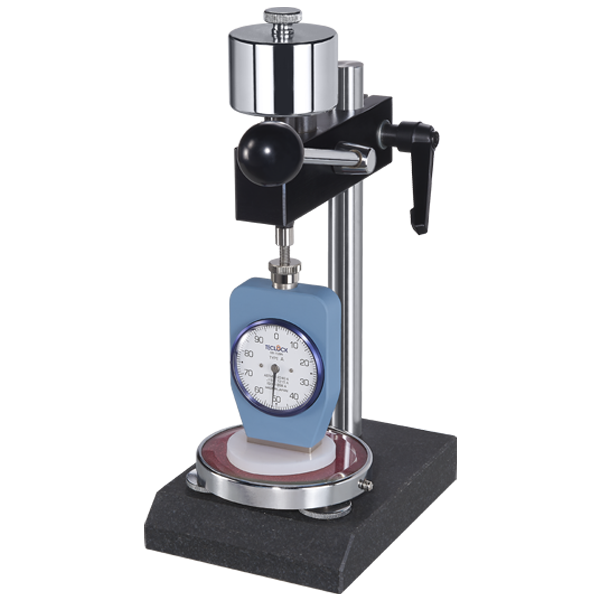

Stand Holder
Confirm to ASTM D2240 ISO 868 DIN 53505 JIS K7215-1992 JIS S6050 Standard

Hardness tester is suitable for soft material such as nonmetal. Applying the specified force on the standard material plate, and the hardness of the material can be obtained by reading the values on the pointer. Different hardness materials have different specimen area and thickness requirements. The test must be done 5-10 times to do the average so that the hardness of the material can be correctly recorded.

The load stand can provide an accurate load and increase measurement accuracy and reproducibility when measure hardness. After press flat the specimen and read the highest value at the first time or set up timing to get second value. To test above 5 point of position and to get average value. To be measurement object of thickness and measurement of position, please see each hardness tester of standard data.

Industry : Rubber Industry、 Plastic Industry

Type QC-GS
Loading Weight 1 kg, 5 kg
4 kg(optional)
Test Stroke 100~450mm
Test Dimension 16 × 12 × 26 cm
Weight 4.6 kg
Tooth Hole M6 (or appointed)
Test Bench Diameter Ø105mm
