Product Serial : QC-643A

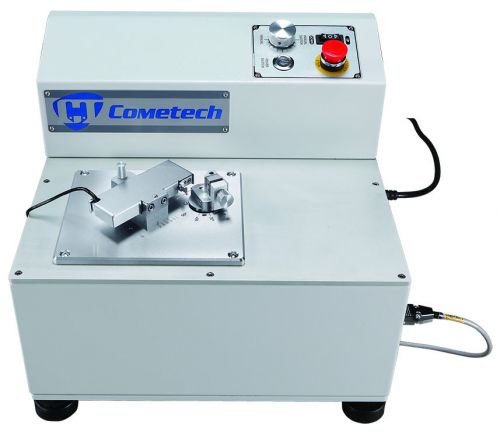

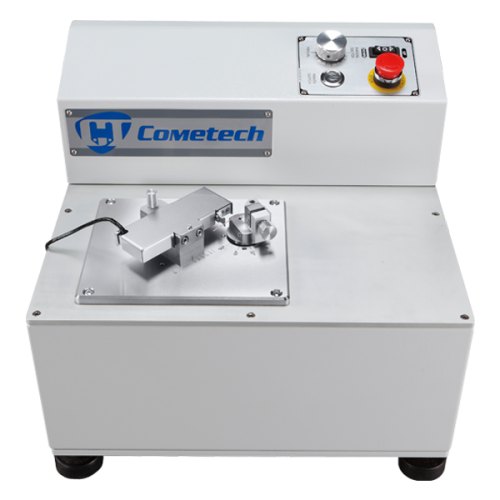

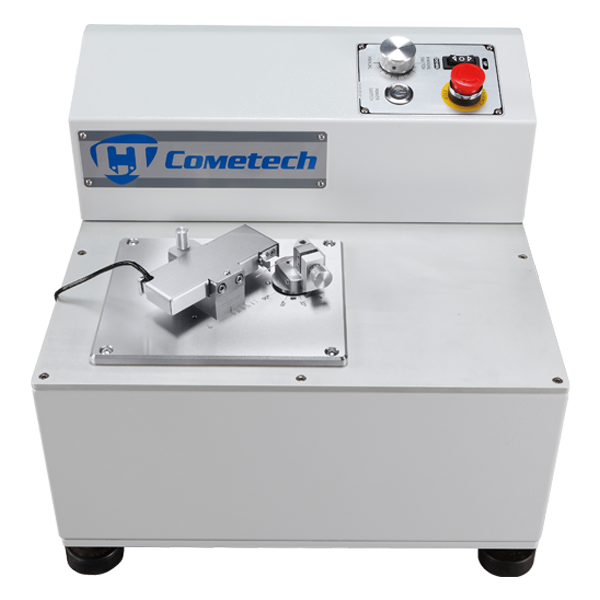

Stiffness Tester
Confirm to BS 6965、BS 3748、ISO 2493: 1992 Standard

   This tester machine is design to test the stiffness of small and thin hair-like materials that are semi-rigid. (Ex: bristles, soft sheets, etc.) The tester bends the sample material and measures the force to define the materials stiffness. Recoil force of the hair or other sample material is measured by bending. Based on this characteristic, the length can be set at 1、5、10、15、20、25、50mm distances. The angle of the test can also be adjusted with range of 1-90゜Choose suitable distance and angle base on the selected hair to get maximum force value after bending.

Industry: Plastic , Hairbrush

Test capacity Max. 500g
Test angle 1º~90º (Adjustable)
Test length 1、5、10、15、20、25、50mm
Speed 5° ~100° / sec (Adjustable)
Accessory Software connection
Weight 20kg
Dimension 350 x 400 x 325 mm


Test Video         Teaching material SOP        Test Case
