Universal Material Tester Horizontal Type

Home / Products / Tape / Universal Material Tester Horizontal Type
Product Serial : QC-507M1F(100N)
Universal Material Tester Horizontal Type
Confirm to ISO 7500-1 , JJG475-88 , ASTM E4 , DIN5122 , JIS B7721/B7733 , EN 1002-2,BS1610,GB T228 Standard

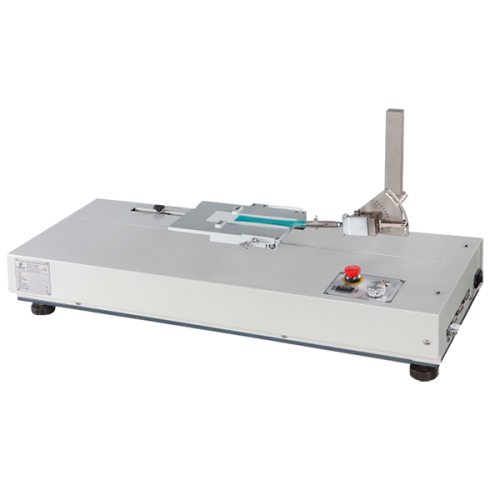

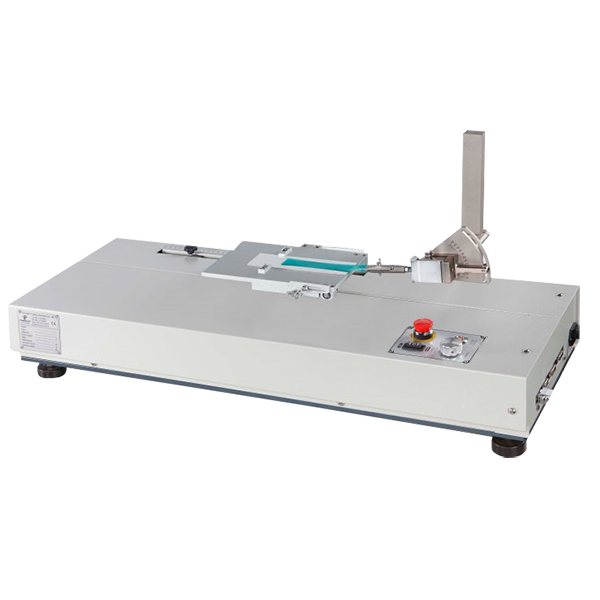

This tester is horizontal design, is especially developed for 180° peeling test and friction force horizontal tensile, it can reduce specimen self-weight to affect test force during test, machine with small volume to save space, easy to operate. It suits for small capacity within100N test, accompany with various grips, jigs and suitable for electron, tape, etc. industries. High accuracy and expandable to terminal mode or connect with pc.

Industry:Tape



Model QC-507M1F
Max. capacity 100 N
Force resolution 1/10,000
Stroke(w/o grip) 300 mm
Stroke resolution 0.05 mm
Speed range 3~600 mm/min
Speed accuracy ± 0.75%
PC connection RJ45
Hardwaresafetyprotection Up/down limit, emergency stop button
Motor Stepper Motor
Transmission Precise decelerators and ball screws are adopted toreduce thenoisy and loss of transmission. Increasingtransmission efficiency.
Feature Load cell includes memory lock to memorize various relatedparameters. It will automatically change tis parameter when replacing load cell, no need for other setting.
Power 100~240VAC,3A
Dimension 92 × 30 × 38 cm
Weight 36 kg



(1) Displayer

1. Adopted with 7- inch of TFT Color touch screen.
2. Chinese, English, Japanese, Three different languages can be selected.
3. Data Display: Force, Stress, Torque, Displacement, Time.
4. Test setting, can set test speed, test direction, automatic position return, breaking point machine stop.
5. Data analysis, can read the maximum force, internal force, breaking point force and so on.
6. Can be stand-alone calibration.
7. Various machine shutdown conditions setting (force, displacement, time, elongation).
8.Can be restored to the original factory state.
9. Unit selection can be Metric unit, Imperial units.
10.Over-travel, overload protection and overtime machine stop.
11.Can store up to 50 data, USB storage data function.
12. Support multiple sets of signal sources.



(2) Extensometer




QC-557 Short extensometer which
is applied in under 50% of elongation test.

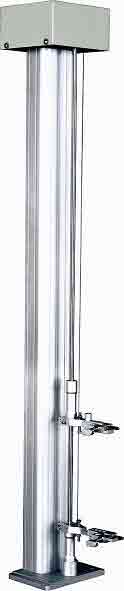

  QC-551 Long extensometer which
is applied in over 20% of elongation test.



1. Data sample rate faster can be set up to 400Hz.
2. Operation method: By keyboard and mouse control test, can also through up and down button to adjust the fixture position.
3. Compatible with Window 7 /8 /10 system.
4. Software has multi-languages with Chinese, English, Japanese, Korean, Spanish and Polish display
5. Operating mode: TCP/IP interface, two-way transmission, the computer directly control the machine action.
6. Can import multiple test data display simultaneously.
7. Unit selection can be Metric unit and Imperial units.
8. Form flexibility, self-planning information analysis.
9. Data name can be self-set and can self-defined formula.
10. Test Screen can be selected data display, graphic display or simultaneous display.
11. Data processing: store, call, list, statistical comparison, etc.
12. Graph X-Y axis physical quantity adjustment, graph-specific mark, interval mark, slope and son on.
13. Test tensile, compression, bending, peeling, spring and other tests.
14. Software protection: Overload, over -displacement, over-time protection.
15. Variety of test actions,,Ex. hold tensile (compression)、10 grades of the actions.
16. Modularization of specimen setting, providing easy to set specimen.
17. Modularization of test conditions to reduce artificial setting negligence and error.
18. Key data capture, can set the upper and lower limits of test data specifications.
19. Support multiple sets of I / O signals, increase testing mechanism.

(1)Software interface (2)Report

*Cometech reserves ultimate modification right of product specification.
