Product Serial : QC-548D2

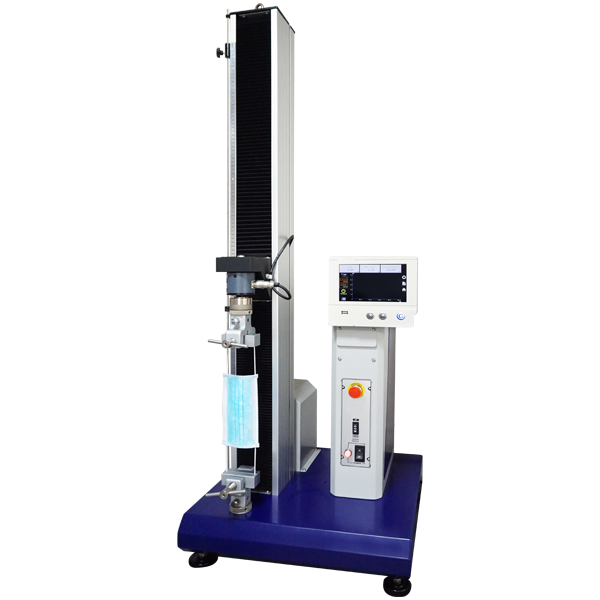

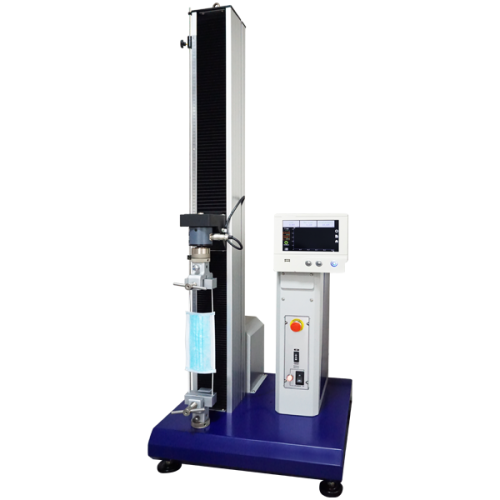

Mask Elastic Band Tensile Tester
Confirm to ISO 7500-1 ASTM E4 ASTM D-76 DIN 5122 JIS B7721/B7733 BS EN 1002-2 BS 1610 GB/T 228 Standard
548D2 is a table-top universal testing machine with Cometech's latest 7" TFT D1 controller, which can conduct the test in stand-along mode. D2 controller displays real time data or data in a short period, various units can be chosen based on user’s needs. Users can also run advance analysis with optional D2 software, or out put raw data to csv. Format(Excel format) with flash drive for self analysis.



Industry

Medical Products, Mask

Inquiry
Max. capacity 5kN
Cantilever distance 80mm
Test stroke(w/o grip) 800 mm
Speed range 8~550 mm/min
Units Force: gf, kgf, lbf, N, kN, ozf, tonf(SI), ton(long), tonf(short)
Stress: Kpa, Mpa, psi, bar, mm-Aq, mm-Hg
Length:m, cm, mm, ft, in
Force Resolution 23 bits
Force Precision 1/10,000

Stroke resolution

 0.0125 mm
PC-Port RJ45(TCP/IP)
Data sampling rate 1200Hz (Max.)

Motor type

 DC Motor
Test Methods Tensile, Compression, 3p bend, 180˚ peel
Analysis Data Over 170
Real Time Data Force Display/ Displacement Display/ Time Display/ Stress Display/ Strain Display (Selectable)
Test End Automatic detection of breaking, and also automatic return can be select
Protection 1. Over load protection
2. Over stroke protection
3. Over time protection
4. Up/Down limit
5. Emergency Stop
Feature 1. Automatic reading of load cell feature information. ( Load cell can be calibrated without installed on machine)
2. Automatic reading of displacement sensor feature information. ( Displacement sensor can be calibrated without installed on machine)
3.Quick release controller for easy to do repair and replacement
Power Supply Single phase 100~240VAC, 5A
Dimension of Machine 50 X 50 X 145

Weight of Machine

 80kg

(1)Display

1.7” TFT Color Display
2.Langue: Chinese, English, Japanese
3.Data Display: Force, Pressure, Torque, Displacement, Time.
4.Can modify setting of Hardware, Test, Unit, Data, Protection and graph.
5.Can switch between Metric and Imperial
6.Store up to 50 data
7.Output test data through USB port

(2) Software Functions

1.Has multiple analysis.
2.Can customize data name.
3.Sampling rate: at most 1200Hz
4.Has both Metric and Imperial unit.
5.Can show/hide test data or graph
6.Operation System: Windows 7 or above
7.Can display multiple test data at once.
8.Can save, load, list and compare data.
9.Can reallocate test table to your preference.
10.Can display in Chinese, English and Japanese.
11.Control the machine thru TCP/IP port with computer.
12.Can set up over-load, over-travel or overtime protection.
13.Can run compression, tensile, bending, peeling tests... etc.
14.Axis can be set to force, elongation, display, time, strain or stress… etc



(3) Optional Accessories - Extensometer
QC-557 Short Extensometer
Suitable for elongation below 50%		 QC-551 Long Extensometer
Suitable for elongation over 20%
