Computerized Hydraulic universal Testing Machine

Home / Products / Tensile Testing Machine / Computerized Hydraulic universal Testing Machine
Product Serial : QC-954(300 ~1600kN)

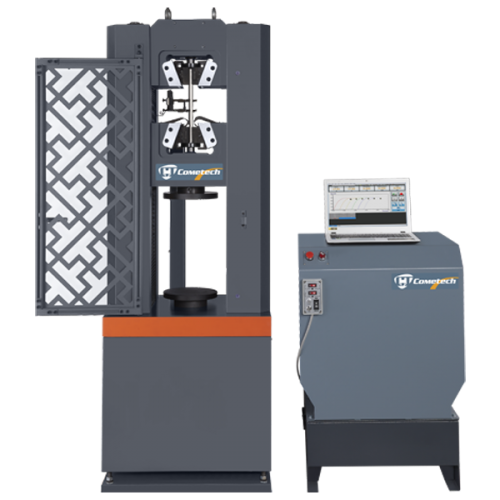

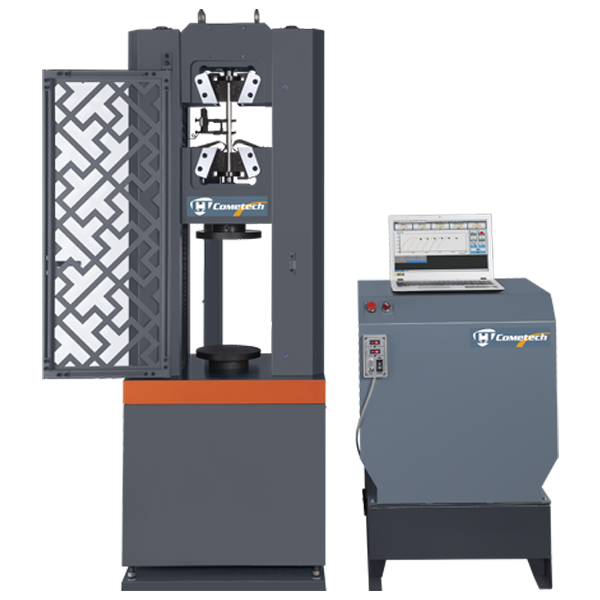

Computerized Hydraulic universal Testing Machine
Confirm to ISO 7500-1, JJG475-88, ASTM E4, DIN5122 , JIS B7721/B7733 , EN 10002-1,EN 1002-2,BS1610,GB228 Standard

This serial model is capable for the high capacity test. Qualify with ASTM, ISO, JIS, GB standard. The hydraulic control is capable of performing the constant stress/ strain/ speed test. High Rigidity and strength in machine structure. Very stable and low down the loss. This machine is equipped with tensile/ compressive/ bending accessories. It is suitable in large force testing like metal, composite material, construction material. Also provide customers with the high accuracy test result and analysis which satisfy their needs in testing.



The separation design of the mainbody and the controller make the maintenance a lot easier in the feature. Very efectively to avoid the interuption of electic circuit, and last longer for the machine using life. It is equipped with M2F controller to support many different kinds of standard requirments.

Industry:
Metal, Architecture,

Composite material



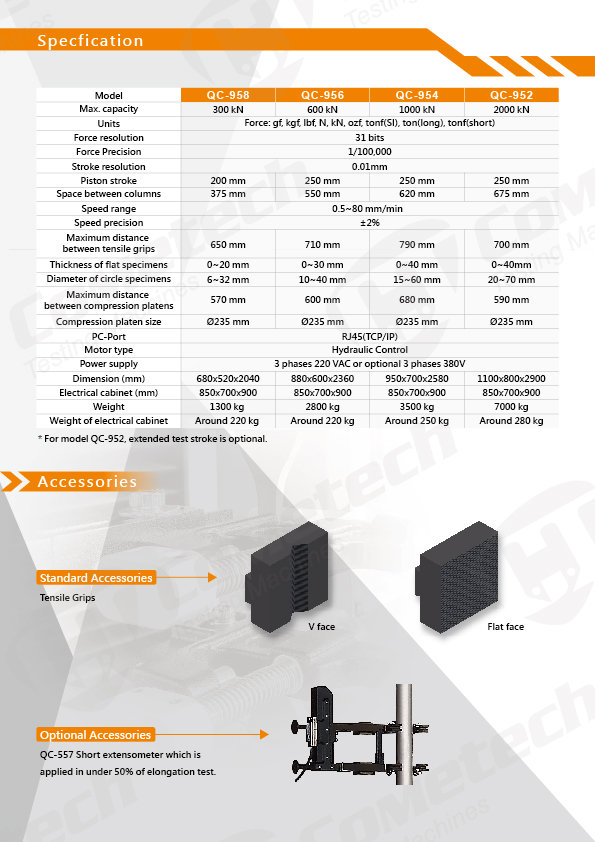

Model QC-958 QC-956 QC-954 QC-952
Max. capacity 300kN 500kN 800kN 1600kN
Units Force: gf, kgf, lbf, N, kN, ozf, tonf(SI), ton(long), tonf(short)
Force resolution 31 bits
Force Precision 1/100,000
Stroke resolution 0.01 mm
Piston stroke 200 mm 250 mm 250 mm 250 mm
Space between columns 440 mm 565 mm 620 mm 675 mm
Speed range 0.5~50 mm/min
Speed precision ±2%
Maximum distance
between tensile grips
620 mm 700 mm 710 mm 1000 mm
Thickness of flat specimens 0~20mm 0~30mm 0~40mm 0~50mm
Diameter of circle specimens 10~32mm 13~40mm 20~60mm 20~70mm
Maximum distance
between compression platens
580 mm 670 mm 680 mm 850 mm
Compression platen size Ø235mm Ø235mm Ø235mm Ø235mm
PC-Port RJ45(TCP/IP)
Motor type Servo hydraulic control
Power supply 3 phases 220 VAC or optional 3 phases 380V
Dimension (mm) 680x520x2040 880x600x2360 950x700x2480 1100x800x2900
Electrical cabinet (mm) 850x700x900 850x700x900 850x700x900 850x700x900
Weight 1700 kg 2800 kg 3500 kg 7000 kg
Weight of electrical cabinet Around 220 kg Around 220 kg Around 250 kg Around 280 kg





Standard Accessories:

Tensile Grips







Optional Accessories:

Extensometer

QC-557 Short extensometer which is applies in under 50% elongation test.



QC-557

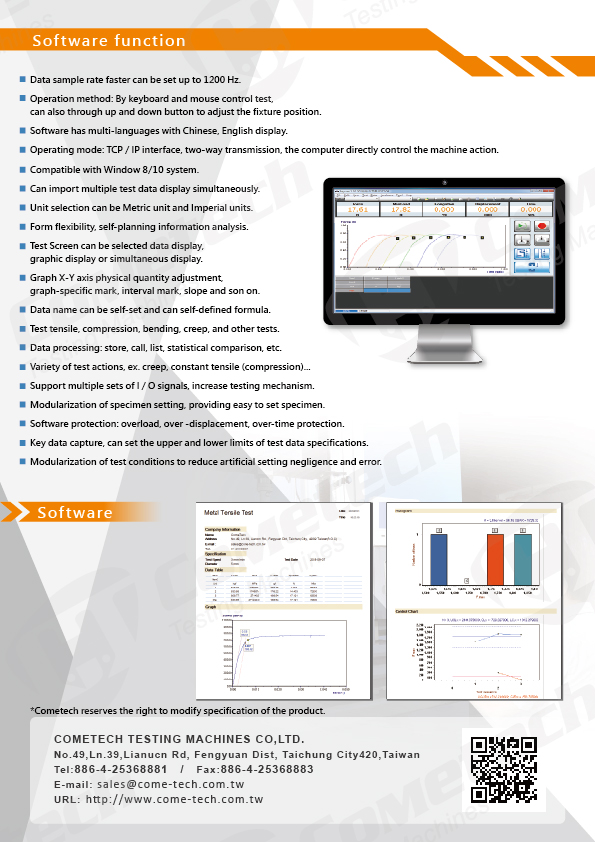

1. Data sample rate faster can be set up to 1200 Hz.

2. Operation method: By keyboard and mouse control test, can also through up and down button to adjust the fixture position.

3. Compatible with Window  8/10 system.

4. Software has multi-languages with Chinese, English display.

5. Operating mode: TCP / IP interface, two-way transmission, the computer directly control the machine action.

6. Can import multiple test data display simultaneously.

7. Unit selection can be Metric unit and Imperial units.

8. Form flexibility, self-planning information analysis.

9. Data name can be self-set and can self-defined formula.

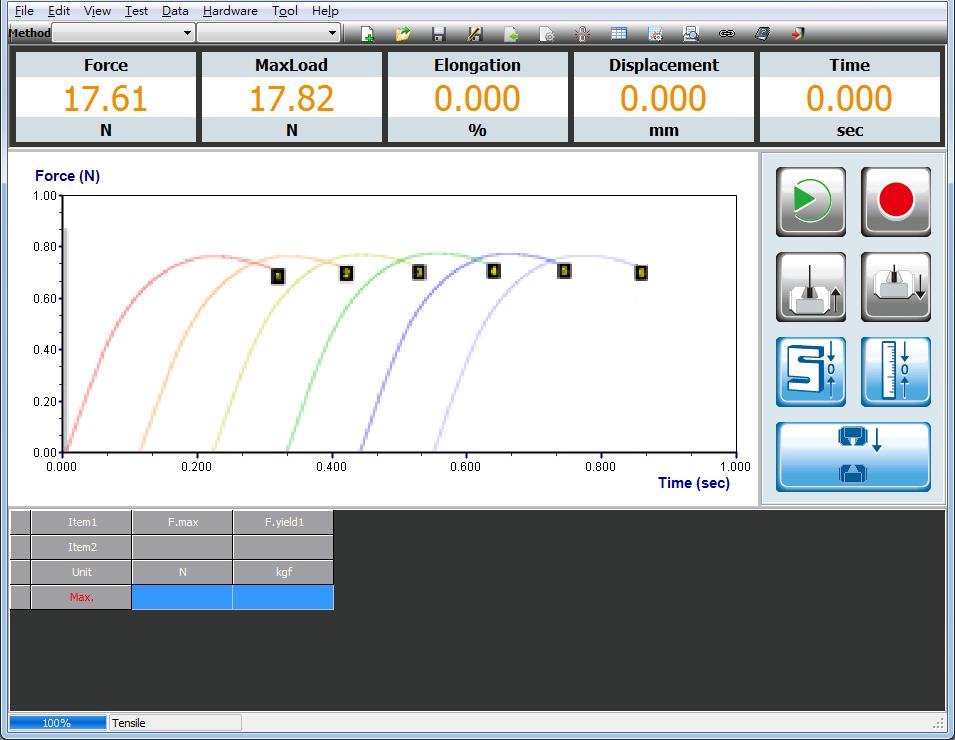

10. Test Screen can be selected data display, graphic display or simultaneous display.

11. Data processing: store, call, list, statistical comparison, etc.

12. Graph X-Y axis physical quantity adjustment, graph-specific mark, interval mark, slope and son on.

13. Test tensile, compression, bending, creep, and other tests.

14. Software protection: overload, over -displacement, over-time protection.

15. Variety of test actions, ex. creep, constant tensile (compression)...

16. Modularization of specimen setting, providing easy to set specimen.

17. Modularization of test conditions to reduce artificial setting negligence and error.

18. Key data capture, can set the upper and lower limits of test data specifications.

19. Support multiple sets of I / O signals, increase testing mechanism.
