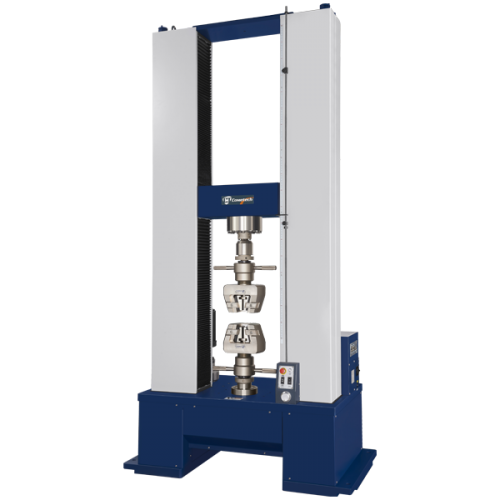

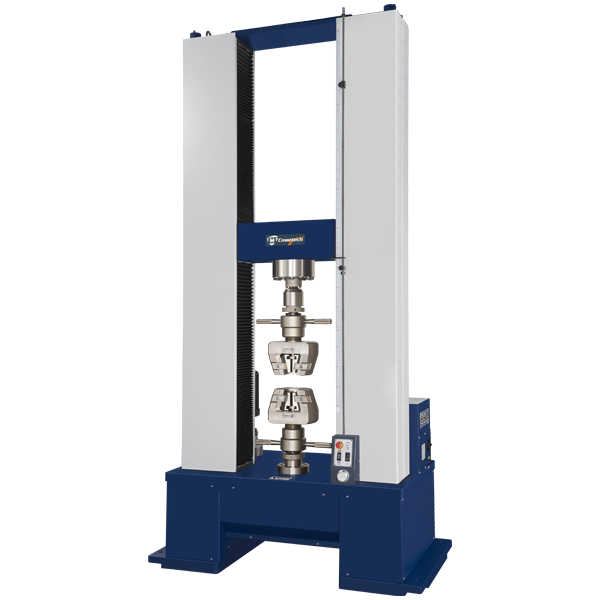

QC-501M2F, 502M2F, 503M2F UNIVERSAL materials testing machine
Confirm to ISO 7500-1, ASTM E4 , ASTM D-76, DIN5122 , JIS B7721/B7733 , EN 1002-2, BS1610,GB T228 Standard

This serial model is capable for the capacity that above 100KN test. QualifyASTM、ISO、JIS、GB standard with material and end product. High rigid frame structure and precise servo motor transmission parts supply that offer stable machine operation for our UTM. Suitable for plastic、Textile、Metal、Architecture industry.Also provide the quiet testing environment and high accuracy test result.
Go with Cometech specialist M2F testing software which is used Windows 7/8 of Person computer. It can do tensile test, compression test, bending test and all kind of tests. The software with multi-languages is very easy to operation. It also has all kind of metric units, real-time graphs and also provides complete analysis test data which finish test can do variety of material analysis.
The separation design of the UTM and the controller make the Maintenance lot easier in the feature. Effectively decrease the maintenance fee, also extend the life time of machine.
The speed of M2F system is capable for 0.0001-375mm/min to increase the testing range.And satisfy more standard requirement.


Industry:Plastic, Textile, Metal and Architecture.

Model 501M2F 502M2F 503M2F
Max. Capacity 300 kN 200 kN 100 kN
Units

Force: gf, kgf, lbf, N, kN, ozf, tonf(SI), ton(long), tonf(short)
Pressure: Kpa, Mpa, psi, bar, mm-Aq, mm-Hg

Force Resolution 1/100,000 (31 bits)
Load cell accuracy ±1% under the range 2-100% of the load cell capacity
(There are optional load cells with higher accuracy)
Test stroke(w/o grip) 1100 mm
Stroke resolution 0.0001 mm
Space between columns 550 mm(680mm,800mm optional)
Speed range 0.0001 ~ 330 mm/min 0.0001~375 mm/min
Speed precision High speed mode
0.02 ~ 330 mm/min 0.2 ~ 375 mm/min
Low speed mode
0.0001 ~ 1 mm/min 0.0001 ~ 2 mm/min
PC-Port RJ45(TCP/IP)(Connect software optional)
Data sampling rate 1200Hz (Max.)
Hardware safety protection upper limit, lower limit, emergency stop button
Motor type Servo motor
Frame Stiffness 562 kN/mm 171 kN/mm
Feature

※Automatic reading of load cell feature information
※Automatic reading ofdisplacement sensor feature information
※force display, displacement display, time display, stress display and strain display
※External analog input (2-channel simultaneous reading of voltage or current)
※Test force automatically zero
※Test force self-defined calibration
※Break detection
※Automatic return
※Force overload protection

Power Supply 3 phase200~240 VAC,30 A 3phase200~240 VAC,20 A Signal phase 200~240 VAC, 10 A
Dimension of Machine 145x66x235cm 135x60x220cm
Weight of Machine 1250 kg 1250 kg 800 kg

(1) Grip& Load Cell

Each test will require different test grips and accessories for the plastics, metal, biomedical, composite, elastomer, component, automotive, aerospace, textile and other applications industries.

★Tensile grip
★Compression grip
★Bending grip
★Peeling/Tearing grip
★Film friction grip
★Load cell



(2) Displayer

1. Adopted with 7- inch of TFT Color touch screen
2. Chinese, English, Japanese, Three different languages can be selected.
3. Data Display: Force, Stress, Torque, Displacement, Time
4. Test setting, can set test speed, test direction, automatic position return, breaking point machine stop.
5. Data analysis, can read the maximum force, internal force, breaking point force and so on.
6. Can be stand-alone calibration.
7.Various machine shutdown conditions setting (force, displacement, time, elongation).
8.Can be restored to the original factory state.
9.Unit selection can be Metric unit, Imperial units
10.Over-travel, overload protection and overtime machine stop
11.Can store up to 50 data, USB storage data function.
12.Support multiple sets of signal sources.



(3) Extensometer




QC-557 Short extensometer
Suitable for elongation below 50%


QC-551 Long travel extensometer
Suitable for samples with over 20% elongation







1. Data sample rate faster can be set up to 1200 Hz
2. Operation method:Full-computerized control to run the test or Jog button control
3. Compatible with Window 7 /8 system
4. Software has multi-languages.
5. Interface for TCP/IP
6. Multi-curves display and real-time plot
7. Various units of measurement are available
8. Flexible form to manage database.
9. Free to name the data file.
10. Testing screen is selective to display data, graph at the same time.
11. Data processing: file saving, setting loading, report printing and data comparing.
12. Graph display: strain v.s. elongation, strain v.s. time and so on.
13. Tensile test, compression test, bending test, peel test…
14. Software protection: Overload, over -displacement ,over-time protection
15.Variety of test actions, ex.reciprocation, creep, hold tensile (compression), test pause, slip test, etc.
16.Modularization of specimen setting, providing easy to set specimen.
17.Modularization of test conditions to reduce artificial settingnegligence and error.
18.Key data capture, can set the upper and lower limits of test data specifications
19.Support multiple sets of I / O signals, increase testing mechanism
(1)Software interface (2)Report

*Cometech reserves ultimate modification right of product specification.
