Hardness Specimen Cutting Device

Главная / Продукты / Резина и пластик / Hardness Specimen Cutting Device
No модели : QC-603I

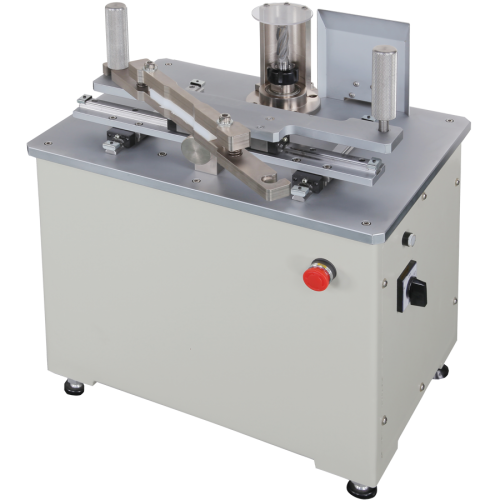

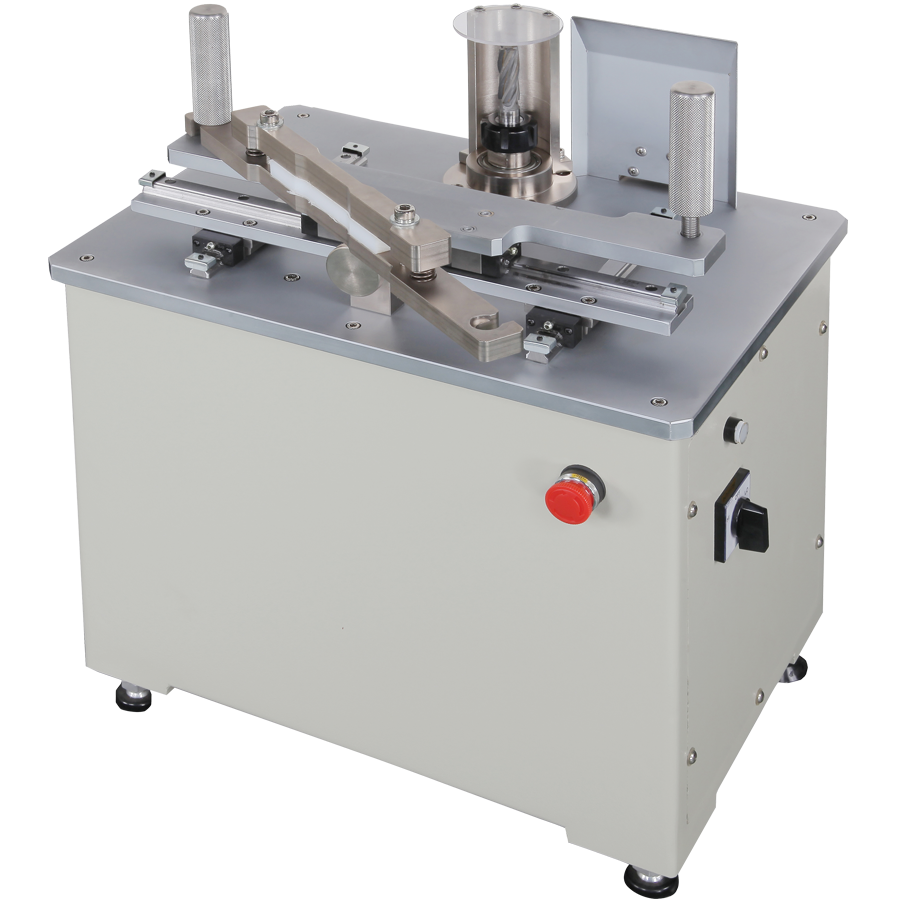

Hardness Specimen Cutting Device

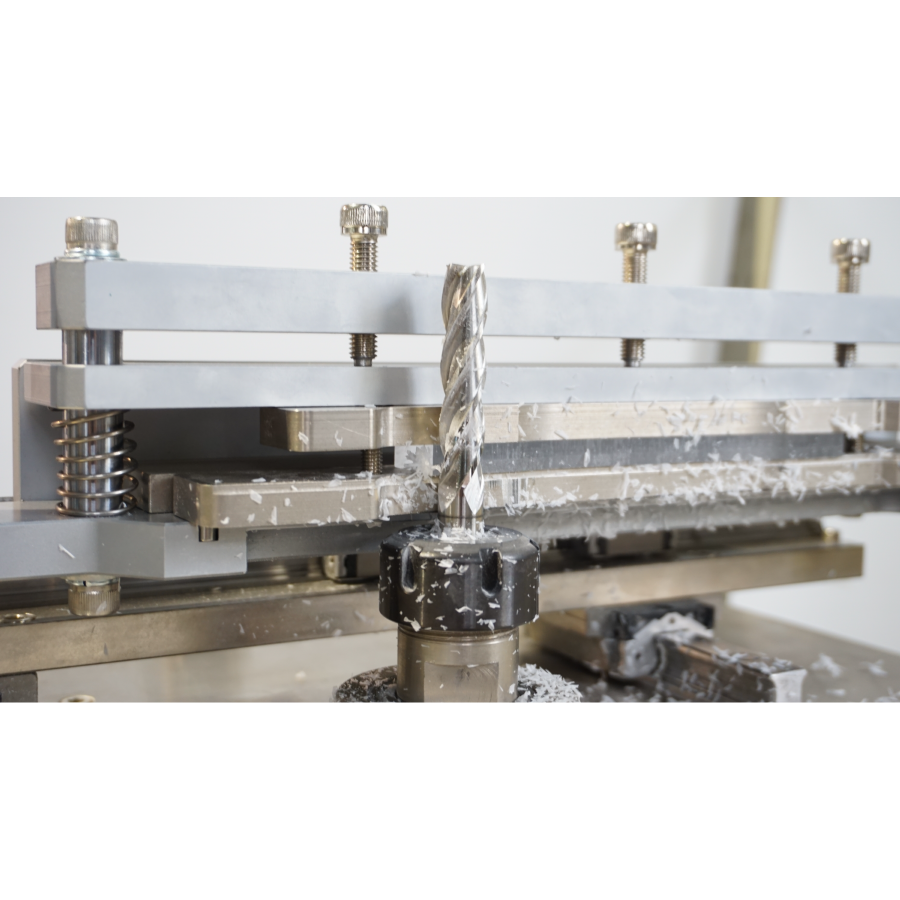

This machine is suitable for hardness flat shape of polymer material, as a fixed sample or specimen trimming purposes. It needs to base on forming of appearance to make mold and take slightly larger than finished product of material clamp on the mold. The mold will be slow put into machine and cut out redundant of shape which is sample.



QC-603I with precise track and mold that can reduce vibration and danger during operation. It also can base on material of properties to set up fast and low speed to doing cut. The customer can choose different mold to replacement with multipurpose purpose.



Industry: Rubber, Plastic

Model QC-603I
Material Hardness of polymer specimen
Horse power DC Motor 600W
Cutting speed High speed 3600 RPM,Low speed 1800 RPM
Specimen thickness 2 ~ 15 mm
Minimum cutting R angle R=6 mm
Accessories 1.With one dumbbell shape cutter, customized shape is also acceptable but cannot be wider than 100mm and longer than 250mm.
2.With transparent protection cover.
3.With cleaner to keep it clean when operating.
4.Equipped with track to increase the stability, safety and fluency.
Power Single phase110V or 220V((Designate)
Dimension 47 × 40 × 45 cm (W x D x H)
Weight 60 kg



Test Video         Teaching material SOP        Test Case
