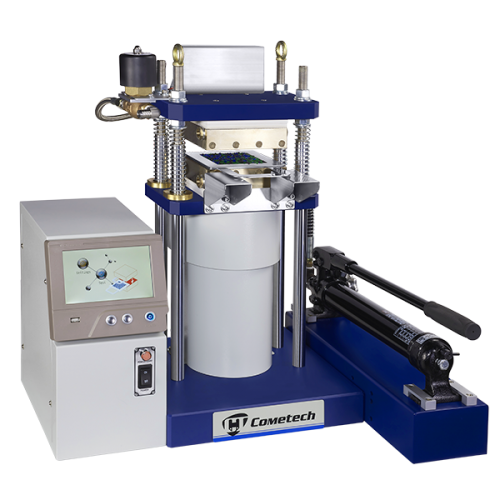

Manual Thermo Molding Machine

No модели : QC-677T
Manual Thermo Molding Machine

This model is built to form raw materials into samples for testing or color matching. Automated molding steps: Put raw materials into molds then place it between compression heating plates to press the air out, heat up the material, and cool it down with water cooling system (optional). It can also be used for basis factory mass production. With our latest and interactive controller users can understand setting and process easily. Real-time data for force, time and temperature will be provided to users for instant control. And our various selections of data units can save users a lot of time from calculating.



Industry: Rubber, Plastic

Model QC-677T
Units Temperature:℃、℉
Area:m2、cm2、mm2、ft2、in2
Energy:kgf、gf、tonf(long)、tonf(short)、lbf、ozf、kN、N、tonf(SI)
Pressure:bar、kgf/cm2、KPa、MPa、mm-Aq(4℃)、psi
Temperature Room temperature ~ 300℃
Heating time 50℃→150℃ take 18mins
Cooling time 150℃→60℃ take 10mins
Cooling method Water cooling system
Size of heating plate 15×15 cm
Distance between heating plate 60~100 mm (Adjustable)
Accessories Sample mold*1 (Dimension:10x10x0.2 cm)
Controller 7” touch screen
Display Instant feedback on force and temperature
Power single phase 220V/50 or 60HZ
Dimension 69×35×75 cm(W×D×H)
Weight 110 kg

Home Page

The main page of the machine.
Easy to understand and operate.




Curved Diagram Mode

With clear test image and easy operating.
