No модели : QC-121M2F

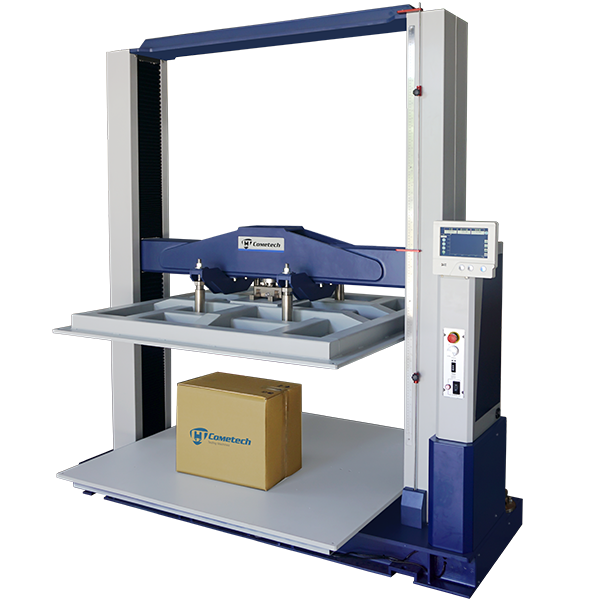

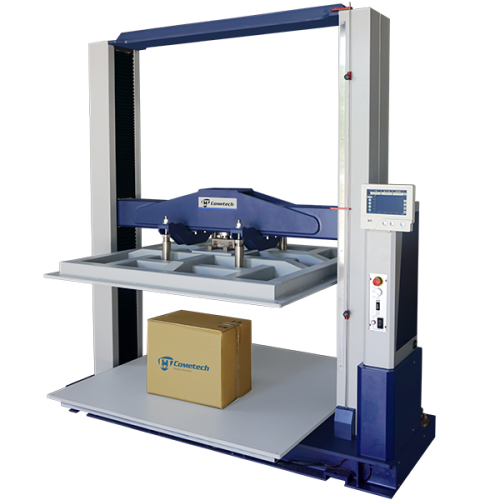

121M2F-Box Compression Tester
Confirm to ISO 12048, ISO 2872, ASTM D4169, TAPPI T804, GB T4857-4, JIS Z212 Standard

This model is designed for test in common corrugated carton or other materials package container to proceed with whole carton compression strength test. To prevent package carton strength is not enough during transport, stack, stock and moving and cause product deformation or damage in these inappropriate treatment conditions.

Go with new design of M2F controller and 7 -inch of TFT Color touch screen. It can do the test in standalone-model.
Various units can be modified in accordance with the needs of users. When using it, it can display the real-time data and record a short time testing data. Data can be restored and exported to EXCEL sheet for further analysis by USB, or the special software can also be an alternative option for proceeding with further data analysis

Through Windows 7/8 of Person computer. The software with multi-languages is very easy to operation. It also has all kind of metric units, real-time graphs and also provides complete analysis test data which finish test can do variety of material analysis. The report configuration can be modify after test.

Industry: Paper

Model QC-121M2F
(A type)
(B type)
(C type)
(D type)
Test space  100×100×120cm    120×120×120cm    100×100×120cm    120×120×120cm
Max capacity 2000kg (20kN) 5000kg (50kN)
Unit selection Force:gf, kgf, lbf, N, kN, ozf, tonf(SI), ton(long), tonf(short)
Stress: Kpa, Mpa, psi, bar, mm-Aq, mm-Hg
Force Resolution 31 bits
Force Precision 1/100,000
Stroke resolution 0.0001mm
Speed range 0.015 ~ 300mm/min
Hardware safety protection upper limit, lower limit, emergency stop
Motor Type DC motor
PC-port R J 45 (TCP/IP)
Power Single phase 200 ~ 240VAC,5A Single phase 200 ~ 240VAC,8A
Dimension 162×100×195
Weight 800 kg 900 kg 850 kg 950 kg
