Pneumatic Type Drop Tester

Главная / Продукты / Упаковка / Pneumatic Type Drop Tester
No модели : QC-113A

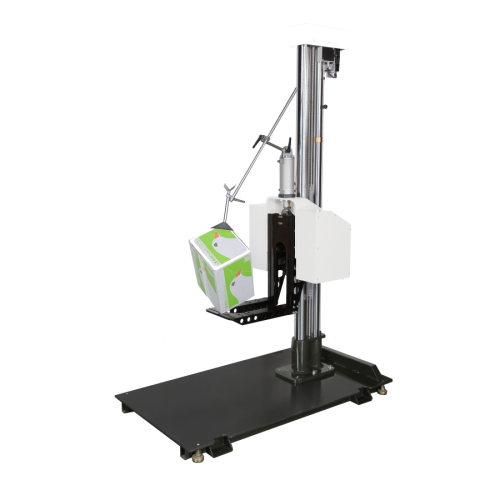

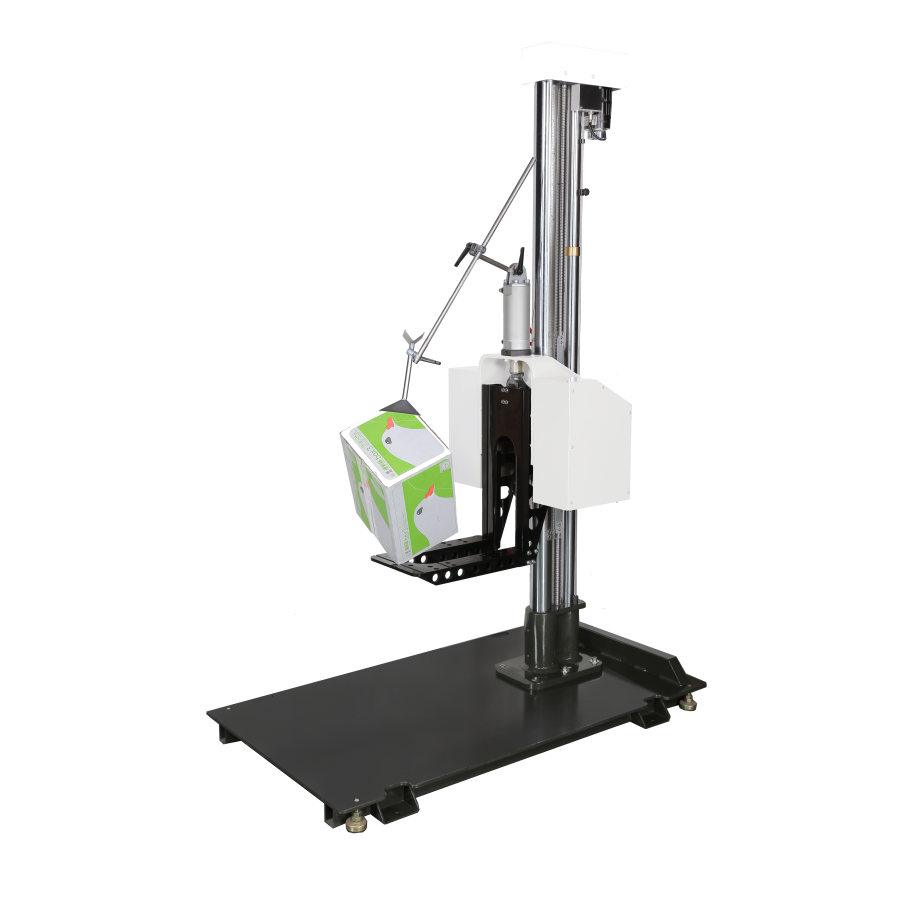

Pneumatic Type Drop Tester
Confirm to ASTM D5276, GB/T 4857.5, CNS-2999, ISTA 1A Standard

This machine is for simulating the drop situation during the deliver. Able to test the drop impact of its side, corner and sideline. It is suitable for the packed products to check the cover, antivibration and the inside product's state after dropping. Based on the result, user can identify the safety design and the impact resistance of the package. User can focus on the repeating droping test for the main products to simulate the surface situation after impacting the hard thing and know the product's strength for safety evaluation.



Industry: Package, Electronics, Electrical appliance

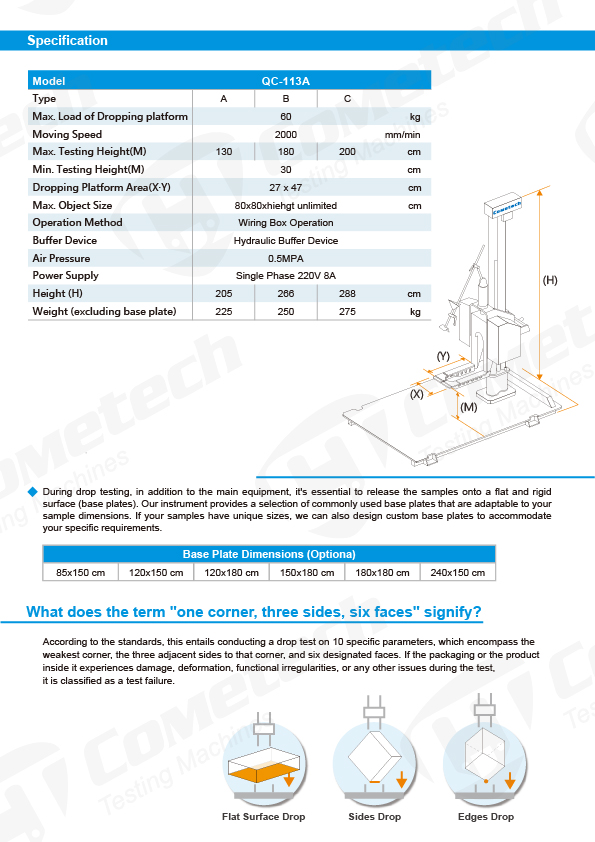

Model Type QC-113A
Testing Height 300 ~ 1300 mm 300 ~ 1800 mm
Moving speed 2000 mm/min
Plate for holding 27 × 47 cm ( W × D )
Max. Load of Dropping
platform
60 kg
Max. Allowance of
Testing Package
800×800×800 mm
Dropping method Electric button - pneumatic cylinder controls
Power supply Single phase 220V,50/60HZ,8A
Dimension
( W × D ×H )
85×150×230 cm 85×150×280 cm
Weight (without based) 225 kg 250 kg
Based Area 85x150 cm(Standard)
120x150 cm (Optional)
200x150 cm(Optional)
120x180 cm (Optional)
Based Weight 135kg / 180kg / 420kg / 215kg
