UNIVERSAL materials testing machine

Home / Products / Tensile Testing Machine / UNIVERSAL materials testing machine
Product Serial : QC-513D1 &QC-508D1 (5kN)
UNIVERSAL materials testing machine

Desktop electronic materials testing machine is equipped with a new design of D1 controller and 7-inch TFT color touch screen, it can be operated in a stand-alone model. Various units can be modified in accordance with the needs of users. Whenusing it, it can display the real-time data and record a short time testing data. Data can be restored and exported to EXCEL sheet for further analysis by USB, or the special software can also be an alternative option for proceeding with further data analysis



Industry: Rubber, Plastic, Paper, Textile, metal, wood, tape, electron, package, Medical, Architecture

Model QC-513D1 QC-508D1
Max. Capacity 5kN
Units Force : gf, kgf, lbf, N, kN, ozf, tonf(SI), ton(long), tonf(short)
Pressure : Kpa, Mpa, psi, bar, mm-Aq, mm-Hg
Load cell accuracy 1/10,000
Testing space Ø70mm
Test stroke 400 mm 800 mm
Displacement resolution 0.0125 mm
Cantilever distance Ø70mm
Min speed at 200kg 20~35 mm/min
Min speed at 500kg 35~600 mm/min
PC-Port TCP/IP
Data sampling rate 1200hz(Max.)
Hardware protection Upper and lower limit switches and emergency stop button
Power source DC motor
Feature

※Comes with 7” TFT color touch screen
※Display test graph on a real-time basis
※Has one force sensor and two encoders for displacement signal.
※Can output raw data through flash drive
※Use the Display to directly conduct the test,
or connect to PC for advance analysis(required software)
※Immediate protection when over-load or overtravel
※Controller can easily install/remove for maintenance or repairment.
※Wafer in each sensor connector memories each sensors'
parameter for quick installation.

Power Phase Single phase 100 ~ 240 V
Dimension 50 x 53 x 100 cm 50 x 53 x 145 cm
Weight 65kgf 80kgf

(1) Displayer

1.Adopted with 7- inch of TFT Color touch screen
2. Chinese, English, Japanese, Three different languages can be selected.
3. Data Display: Force, Stress, Torque, Displacement, Time
4. Can do hardware setting, testing setting, unit setting, data setting .protection setting, graph setting
5.Unit selection can be Metric unit, Imperial units of variety changed.
6. Can store up to 50 data.



(2) Extensometer

1.QC-557 Short extensometerwhich is applied in under 50% of elongation test.




QC-557   QC-515



2.QC-515 Long extensometer which is applied in over 20% of elongation test.


1. Data sample rate faster can be set up to 1200 Hz
2. Operation method:Full-computerized control to run the test or Jog button control
3. Compatible with Window 7 /8 system
4. Software has multi-languages.
5. Interface for TCP/IP
6. Multi-curves display and real-time plot
7. Various units of measurement are available
8. Flexible form to manage database.
9. Free to name the data file.
10. Testing screen is selective to display data, graph at the same time.
11. Data processing: file saving, setting loading, report printing and data comparing.
12. Graph display: strain v.s. elongation, strain v.s. time and so on.
13. Tensile test, compression test, bending test, peel test…
14. Software protection: Overload, over -displacement ,over-time protection

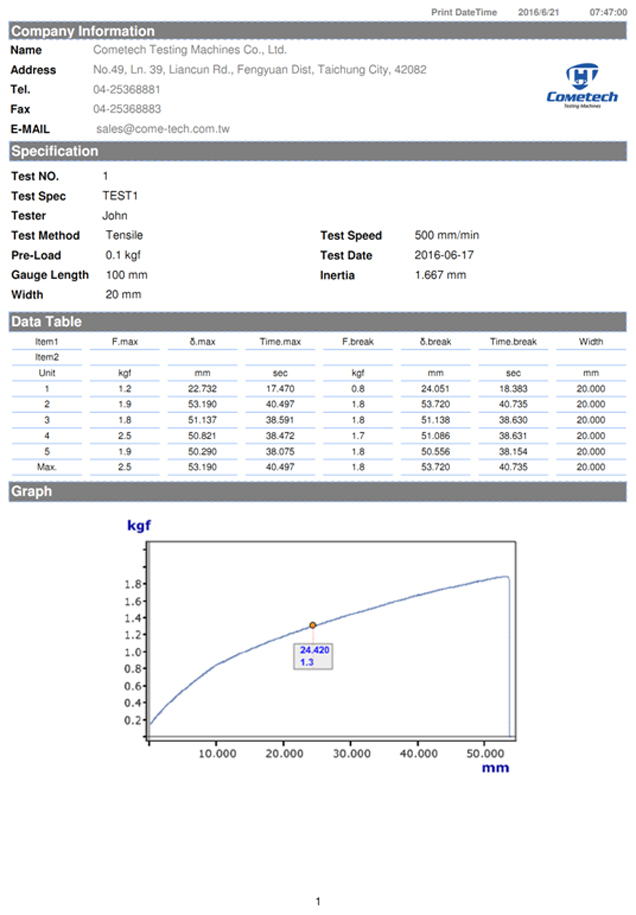

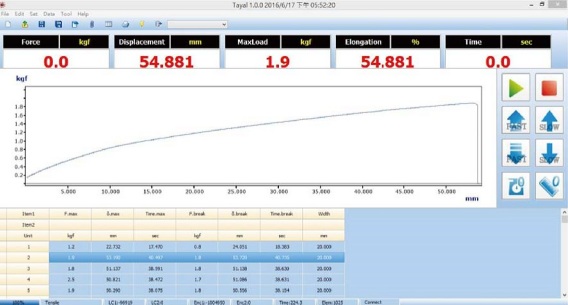

(1) Report (2) Software interface
