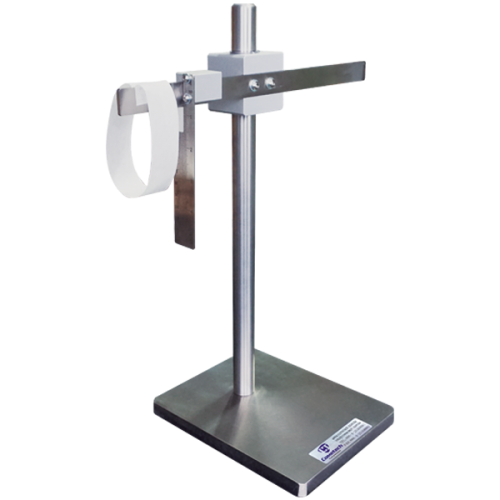

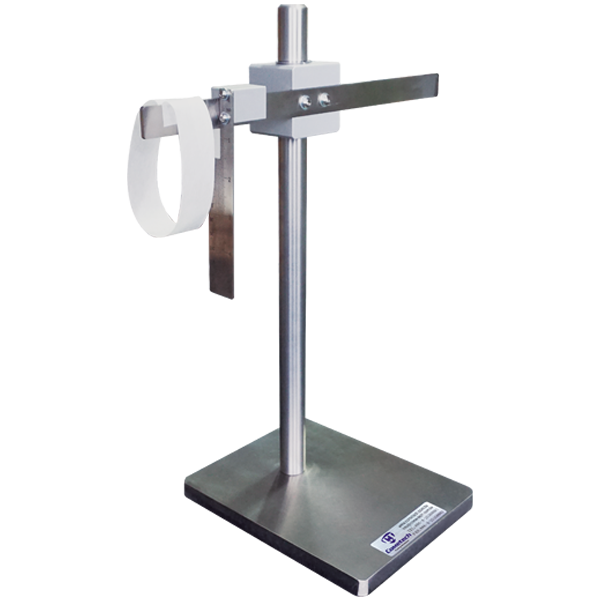

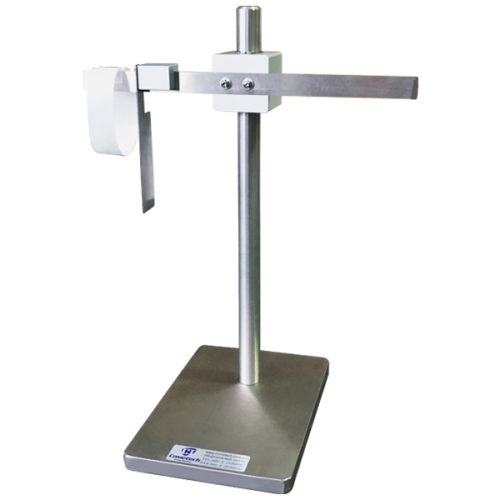

Stiffness Tester

No модели : QC-321
Stiffness Tester
Confirm to JIS-L1096 Standard

This tester mainly used to test the Soft –Hard and stiffness of textile. Hang the 25cm x width 2cm bar shape specimen on suspension bar, wait a specific time, the specimen will droop or remain original shape due to material and time factors change, Then measure the distance from the top of suspension bar to the lowest point of the loop.



Industry: Textile

Suspension 12 inch
Specimen size 25 x 2 cm
Suspension bar 1/8 inch width, 3/4 inch length
Tape size 1/2 width
Specification size 30×20×40cm
Weight 5.5kg
