No модели : QC-104H

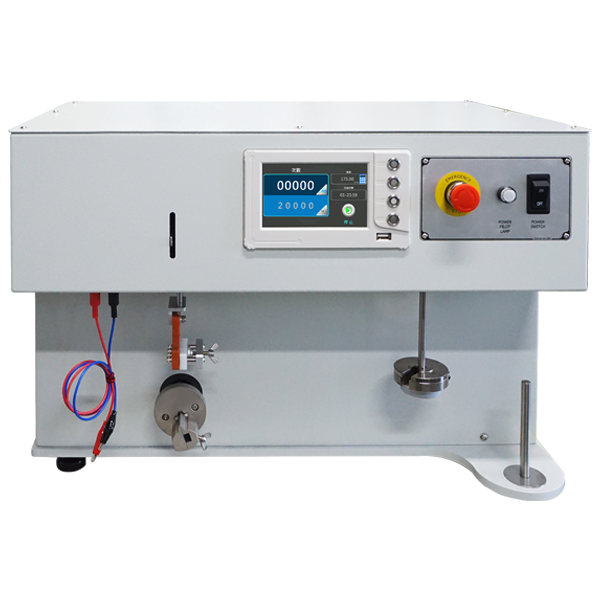

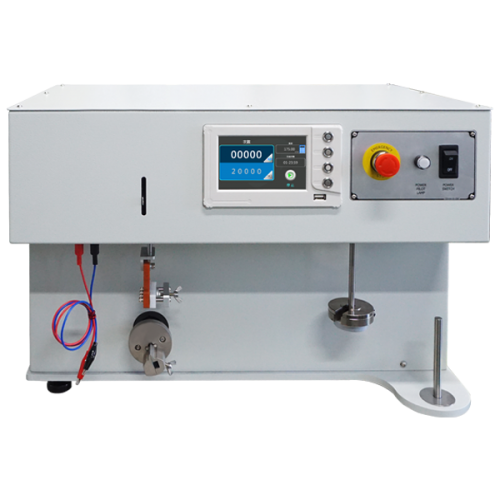

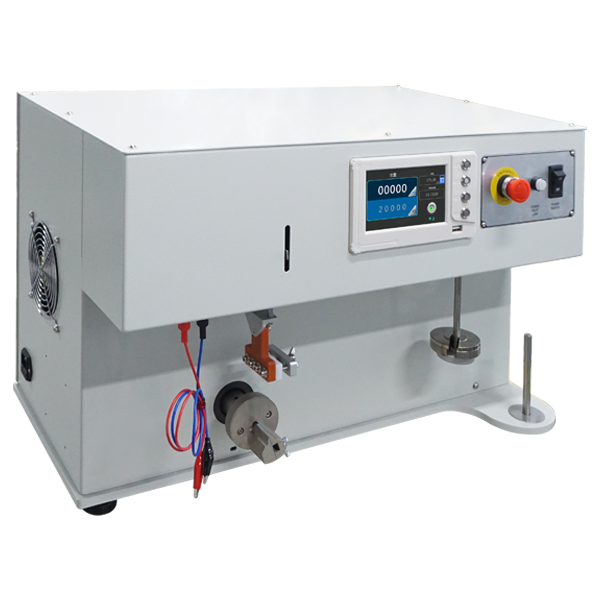

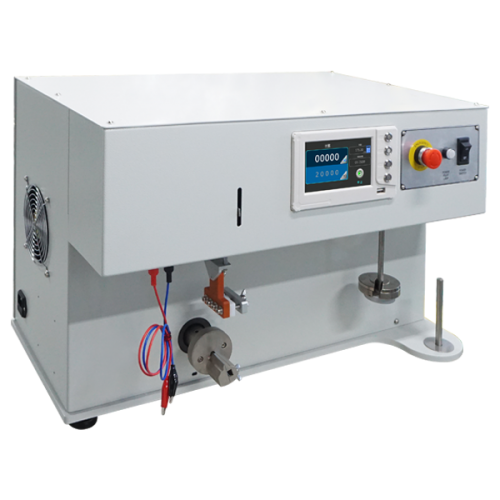

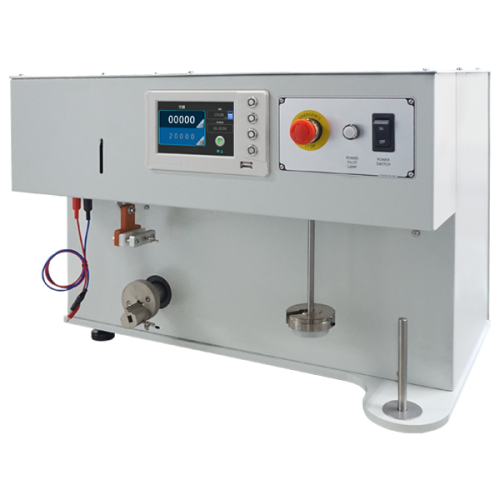

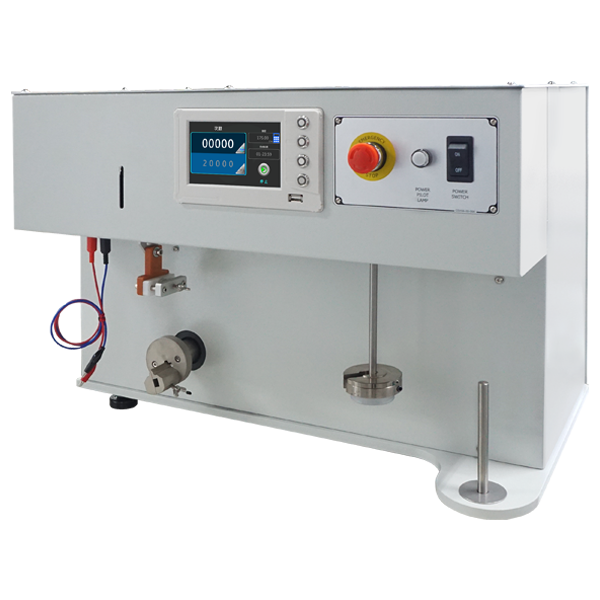

MIT Folding Endurance Tester
Confirm to TAPPI T423PM 、 ASTM D2176 、 JIS P8115 、 GB/T 2679.5 、 ISO 5626 Standard

MIT Folding Endurance Tester is for testing the material's folding endurance strength, the machine can test the available bending times when the material bear the tension and bending angle (from +135 degree to -135 degree normally). The common test material includes aluminum foil, copper foil, paper, ductile circuit board and so on. QC-104A can also support the bending time test for conductive break circuit material and measure the times sample bend and break. QC-104A is equipped with 5" touch screen which can support bending speed, bending times and estimated test period. The machine will auto stop and display the test times while detecting the break or unable to conduct electricity of the sample.



Industry: Paper, Electron

Test Speed 175± 5 CPM(standard) or specified (20~200 CPM)
Test Angle Standard ±135°±5°, ±90°±3° (please specified in advanced) or customize
Gap Between Grips 70 mm
Grip Interval (T) 0.25 / 0.5 / 0.75 / 1.0 / 1.25 mm (able choose one type)
Angle Radius (R) 0.38 / 0.5 / 0.8 / 1.0 / 2.0 / 3.5 (able choose one type); attached 0.8 as standard accessory.
Weight 50g, 100g, 200g, 300g, 500g, 1000g (each weight for one)
Counter 0~99,999,999 times to reach auto stop
Dimension 63 × 44 × 46 cm
Machine Weight 50 kg
Power Single Phase 110~240V
