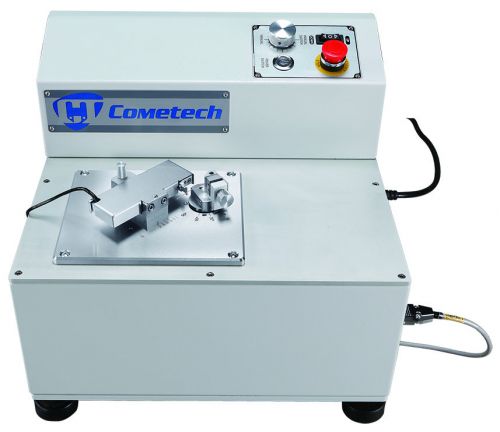

Stiffness Tester

No модели : QC-643A
Stiffness Tester
Confirm to BS 6965、BS 3748、ISO 2493: 1992 Standard

This tester is designed to test hardness, small and thin materials (Ex: bristle, soft sheet, etc.) Test the bending that produces force to define materials stiffness.



Hair that is bent can bring reaction and then measure its force value, based on this characteristic, hair length can set 1、5、10、15、20、25、50mm different distance and can test 5゜、7.5゜、15゜、30゜、90゜various angles condition, depend on selected hair to choose suitable distance and angles, get the maximum force value after bending

Industry: Plastic

Test capacity Max. 500g
Test angle 5°、7.5°、15°、30°、90°
Test length 1、5、10、15、20、25、50mm
Speed 5° ~100° / sec (Adjustable)
Option Software connection
Weight 20kg
Dimension 350 x 400 x 325 mm

Stiffness Tester
